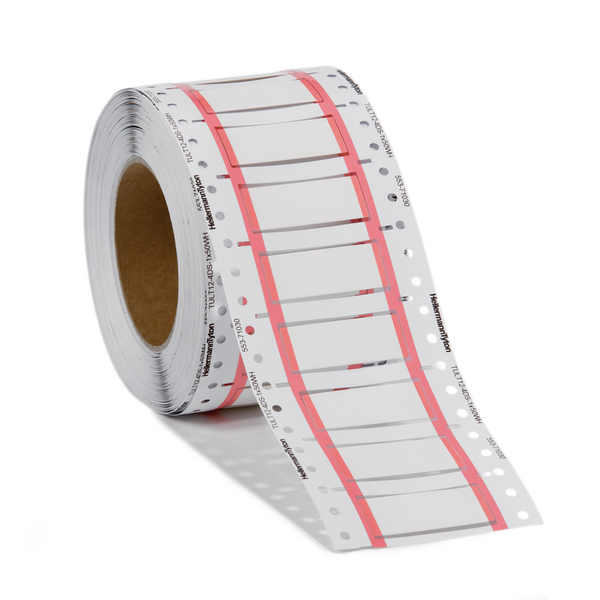

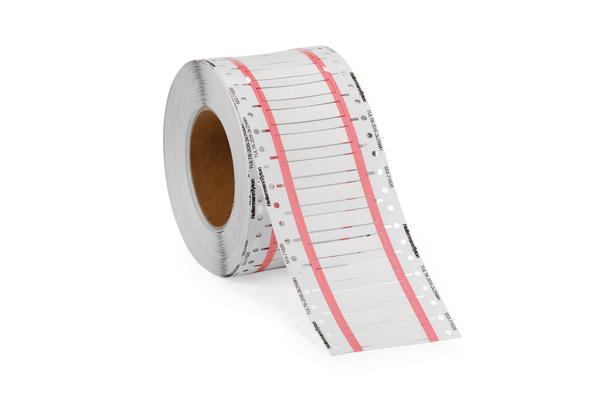

Shrinkable markers "Ladder Style", thermal transfer : TULT2.4-0.8DS-1x50WH

Shrinkable markers ladder style, thermal transfer, 3:1 (2.4 mm/0.8 mm) white 50 mm UL-listedArticle number: 553-71000


  • Shrink ratio 3:1
  • 50 mm, 25 mm and 16 mm pre-cut marker options as standard, other lengths available on request
  • Available in white or yellow
  • Good mechanical strength and resistance to organic solvents and chemicals
  • Highly flexible
  • Delivery in convenient storage boxes

Certifications & Approvals


TULT DS is a UL recognised 3:1 heat shrink marker material pre-cut and formatted into a convenient "ladder" system. This pre-cut format not only allows printing on both sides of the marker but the user can also easily choose and pick each required marker. TULT’s polyolefin compound has good mechanical strength and resistance to organic solvents and chemicals. The surface of the tubing has been especially prepared so that print performance is excellent at all times using HellermannTyton's printer range.

Application Tool H6100, TT431, TT4030, TrakMark DS
Colour White (WH)
Fixation Method Others
Pack Cont. 1000pcs.
Package Quantity per Reel
Printable (Yes/No) Yes
Product Family TULT DS – 3:1 Military and Electronics "Ladder Style"
Product Group Shrinkable markers "Ladder Style", thermal transfer
Short Description Shrinkable markers ladder style, thermal transfer, 3:1 (2.4 mm/0.8 mm) white 50 mm UL-listed
Shrink Ratio 3:1
Variant Thin-Wall
With label space Yes
Length (L) 50.0mm
Longitudinal Change After Shrinkage -15 % max.
Print Method Thermal transfer or laser beam printing
Recov. ∅ d 0.8mm
Recov. ∅ d max. (imperial) 0.003"
Supplied ∅ D 2.4mm
Supplied ∅ D min. (imperial) 0.094"
Wall (WT) 0.53mm
Wall (WT) (imperial) 0.029"
Width (W) 50mm
Dielectric Strength 20 kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 224 VW-1
Halogenfree No
Hazardous good No
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +90 °C
Operating Temperature - °C -55 °C to +135 °C
Recommended Ribbon Type TTDTHOUT
Reel Variant ladder-style variant
Specifications ANSI/UL 224, MIL-STD-202G Method 215K
UL OCD link Link
UL-File Number E143529
EAN / GTIN-13 4031026453248
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00324
Packaging 1 - Weight (kg) 0.75kg
Packaging 1 - Width (m) 0.175m
Weight 0.75kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 39131502
