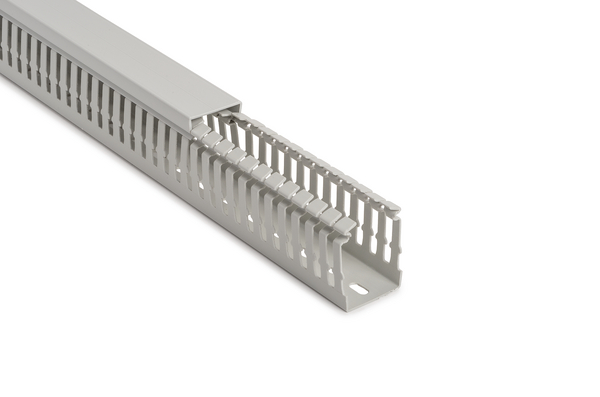

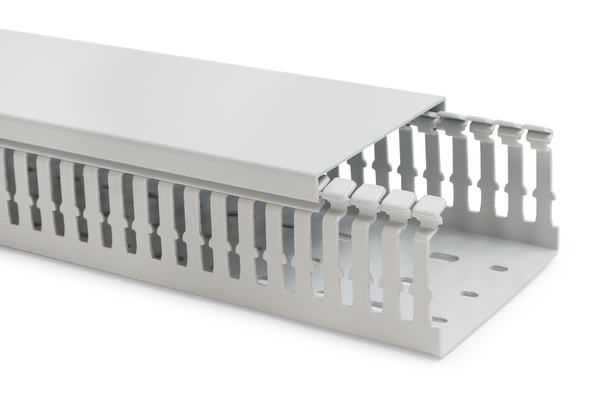

Halogen-free wiring ducts : HTWD-HF-80X80

Wiring duct 80x80 mm, halogen-free, 2000 mm, grey, Article number: 183-28080

Features

  • Excellent fire-safety characteristics according to UL94 und EN 45545-2
  • Narrow slots suitable for small-diameter wires
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Duct covers hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of duct

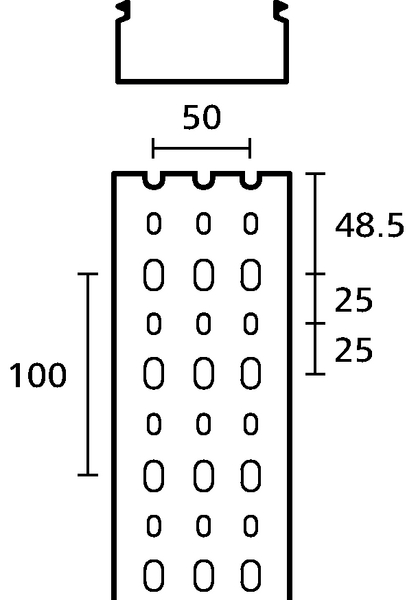

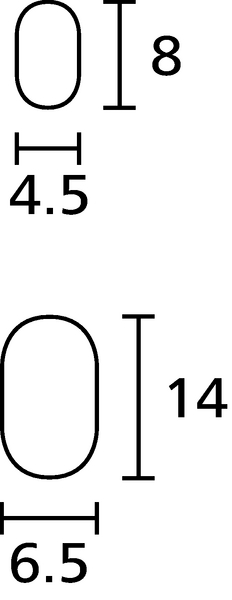

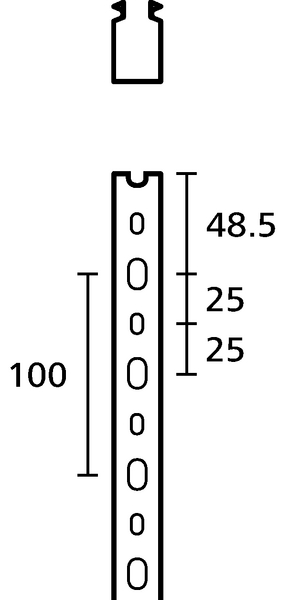

  • Base perforation according to DIN EN 50085

Certifications & Approvals

Application

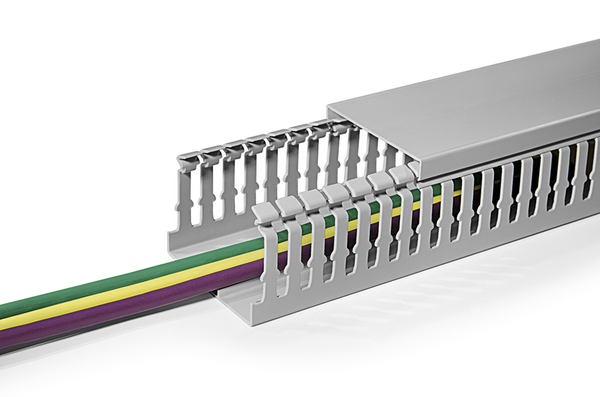

HelaDuct HTWD-HF wiring ducts are used to route and protect wires in control panels and switching systems where there are high demands on personal or material safety in case of fire, such as in public transport, tunnels, data-processing centers or public buildings.

HelaDuct HTWD-HF (metric sizes) is suitable for following markets and industries

Colour Grey (GY)
Fixation Method Screw Mounting
Pack Cont. 12m
Package Quantity per Box
PART DESCRIPTION HTWD-HF-80X80-PC/ABS-GY
Product Family HelaDuct HTWD-HF (metric sizes)
Product Group Halogen-free wiring ducts
Short Description Wiring duct 80x80 mm, halogen-free, 2000 mm, grey
Type of side wall Slotted
Height (H) 80mm
Length (L) 2m
Width (W) 80mm

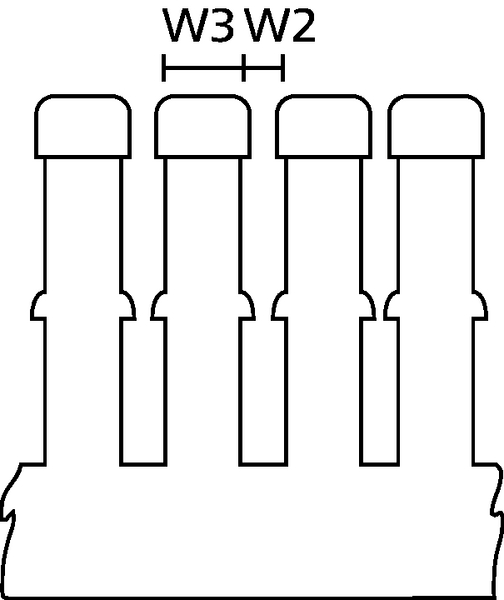

Width (W2) 6.0mm
Width (W3) 6.5mm
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R22 HL2, R23 HL2
Flammability UL 94 V0
Halogenfree Yes
Hazardous good No
Material Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
Operating Temperature - °C -25 °C to +90 °C
Self extinguishing (Yes/No) Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5, DIN EN 45545-2 (02/2016)
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E357929
EAN / GTIN 4031026565040
Packaging 3 - Height (m) 0.118m
Packaging 3 - Length (m) 2.01m
Packaging 3 - Qty 12
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0593
Packaging 3 - Weight (kg) 9.896kg
Packaging 3 - Width (m) 0.25m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 360
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 317.88kg
Packaging 4 - Width (m) 0.8m
Weight 1.73lbs
Weight 0.78kg
ETIM 6.0 EC000012
ETIM 7.0 Key EC000012
UNSPSC Key 39131712
