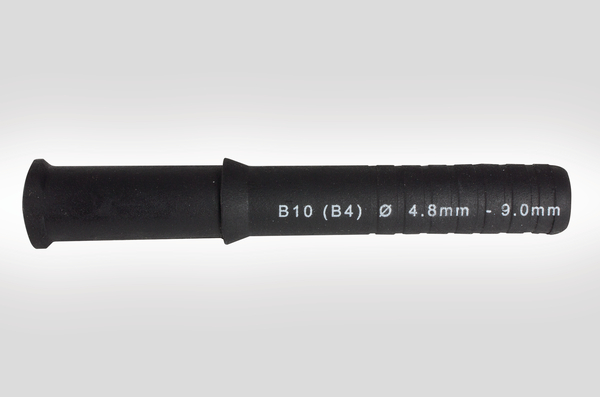

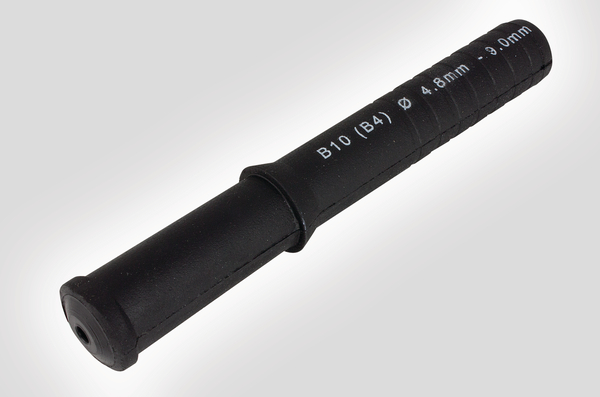

Cablelok B10 4.8-9.0mm x1
Art.-No. 857-50149
| CABLELOK-B10-01
|
Copied
- Cable range coverage from 4.8mm to 9.0mm
- Seals to in excess of 6m head of water
- Highly repeatable installation - the quality of the seal is not dependant on the skill of the engineer
- Ideal for use in hazardous areas as no heat or gas is required for installation
- Supplied in multiples of 1
- Supplied with installation lubricant sachets
Request your individual offer now
Request quote
More products in this product group:
| Cable ⌀ max | 9.0mm |
| Cable ⌀ min | 4.8mm |
| Colour | Black (BK) |
| Content | 1 x CABLELOK-B10(4), 1 x Lubricating Wipes |
| Description | HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%. |
| Material | Chloroprene rubber (CR) |
| PART DESCRIPTION | CABLELOK-B10-01 |
| Pack Cont. | 1pc. |
| Package Content packed in | Bag |
| Port | B |
| Port count | 1 |
| Product Family | Round Cablelok |
| Product Group | B Port Cablelok |
| Short Description | Cablelok B10 4.8-9.0mm x1 |
| Technical Description | The B10 Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene designed to be used with the range of HellermannTyton dome closures. The B10 cablelok provides a seal for cables within a cable range of 4.8mm – 9.0mm. |
| Type | CABLELOK-B10-01 |
| Variant | Round - B |
