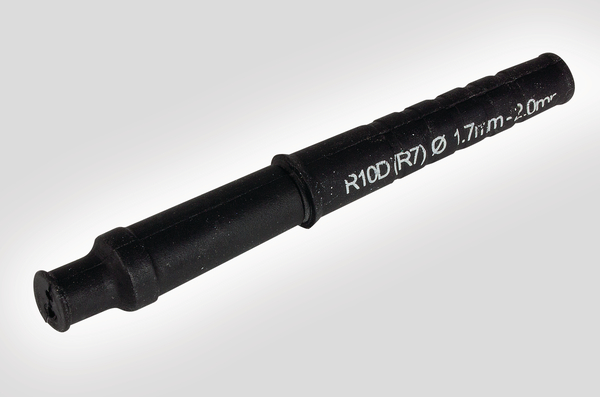

R Port Cablelok : CABLELOK-R10D-01

Cablelok, Article number: 857-50161

Cable range coverage from 1.7mm to 9.5mm
Multi-hole versions available to allow 2 cable drops from the same port
Multi-hole cable range coverage from 1.7mm – 2.0mm (R10D), 2.0mm - 3.0mm (R15D) and 3.8mm – 4.8mm (R30D)
Port closure plug available
Supplied in multiples of 1 and 10
Supplied with installation lubricant sachets

Cable ∅ max	2.0mm
Cable ∅ min	1.7mm
Colour	Black (BK)
Content	1 x CABLELOK-R10D(R7), 1 x Lubricating Wipes
Pack Cont.	1
Package Quantity per	Bag
PART DESCRIPTION	CABLELOK-R10D-01
Port	R
Port count	2
Product Family	Cablelok
Product Group	R Port Cablelok
Technical Description	The R Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 11 Cablelok's which cover a cable range of 1.7mm – 9.5mm including three multi-hole versions to allow two cable drops from the same port and a port plug for blocking unused R sized drop ports.
Variant	Round - R
