B Port Cablelok : CABLELOK-B30-10
Cablelok B 13.0-16.5mmX10Article number: 857-50146
Features
- Cable range coverage from 4.8mm to 16.5mm
- Port closure plug available
- Supplied in multiples of 1 and 10
- Supplied with installation lubricant sachets
More products in this product group
B Port Cablelok >| Cable ∅ max | 16.5mm |
| Cable ∅ min | 13.0mm |
| Colour | Black (BK) |
| Content | 10 x CABLELOK-B30(B2), 10 x Lubricating Wipes |
| Pack Cont. | 10pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | CABLELOK-B30-10 |
| Port | B |
| Port count | 1 |
| Product Family | Cablelok |
| Product Group | B Port Cablelok |
| Short Description | Cablelok B 13.0-16.5mmX10 |

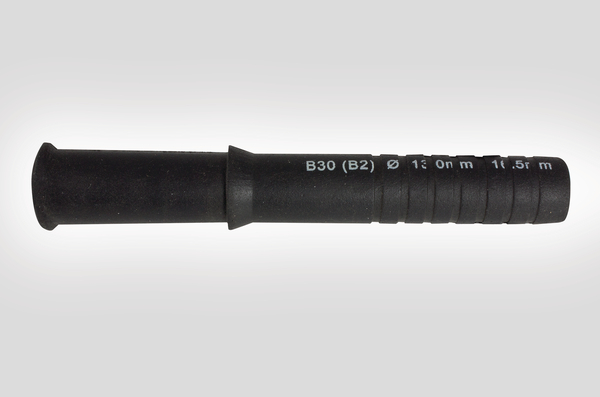

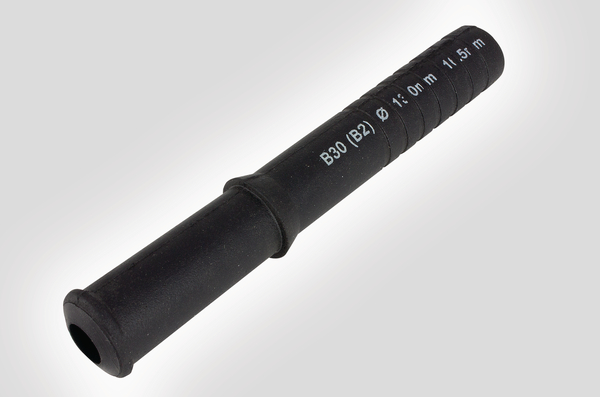

| Technical Description | The B Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 4 Cablelok's which cover a cable range of 4.8mm – 16.5mm including a port plug for blocking unused B sized drop ports. |
| Variant | Round - B |
| ELV compliant Dir. Art. 4 (2) | YES |
| Material | Chloroprene rubber (CR) |
| EAN / GTIN | 5022660101984 |
| Packaging 1 - Height (m) | 0.381m |
| Packaging 1 - Length (m) | 0.254m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0m³ |
| Packaging 1 - Weight (kg) | 0.2kg |
| ETIM 6.0 | EC000879 |
| ETIM 7.0 Key | EC000879 |
| UNSPSC Key | 43202218 |
