19/03/2024

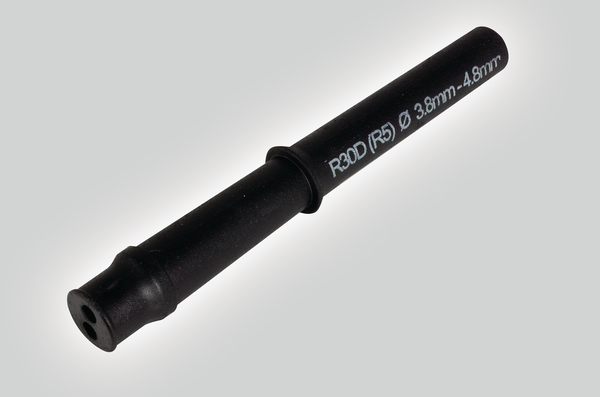

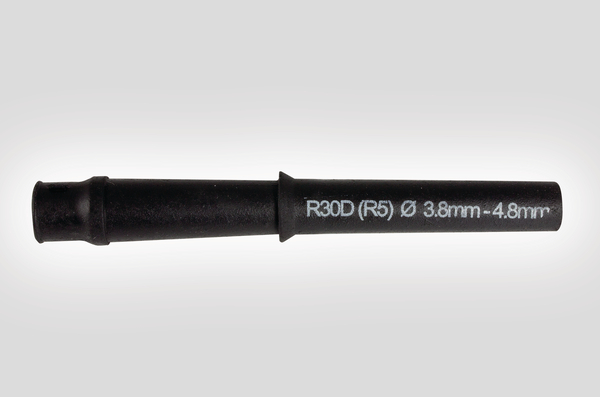

Cablelok R30D(2) 3.8-4.8mm x10
Art.-No. 857-50160 | CABLELOK-R30D-10 Details

  • Cable range coverage from 1.7mm to 9.5mm
  • Multi-hole versions available to allow 2 cable drops from the same port
  • Multi-hole cable range coverage from 1.7mm – 2.0mm (R10D), 2.0mm - 3.0mm (R15D) and 3.8mm – 4.8mm (R30D)
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Show more

Request your individual offer now

Cable ∅ max 4.8mm
Cable ∅ min 3.8mm
Colour Black (BK)
Content 10 x CABLELOK-R30D(R5), 10 x Lubricating Wipes
Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
Material Chloroprene rubber (CR)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION CABLELOK-R30D-10
Port R
Port count 2
Product Family Cablelok
Product Group R Port Cablelok
Short Description Cablelok R30D(2) 3.8-4.8mm x10
Technical Description The R Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 11 Cablelok's which cover a cable range of 1.7mm – 9.5mm including three multi-hole versions to allow two cable drops from the same port and a port plug for blocking unused R sized drop ports.
Variant Round - R
Weight/Unit 0.1521kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660102127
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.2kg
EFO Norway block number 100600
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 43202218
