S Port Multi-Drop Cablelok : CABLELOK-S15M5-10

Cablelok, Article number: 857-50229

Features

  • Cable range 6.8mm to 7.2mm
  • Allows 5 cables drops from a single S Port
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Cable ∅ max 7.2mm
Cable ∅ max 0.28"
Cable ∅ min 6.8mm
Cable ∅ min 0.27"
Colour Black (BK)
Colour (short) BK
Discontinued Globally NO
Local Product Manager Tracey Wenham (Tracey.Wenham@HTData.co.uk) United Kingdom
Manufacturer Type CABLELOK-S15M5-10 (10)
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION CABLELOK-S15M5-10
Port S
Port count 5
Port count 5
Product Family Cablelok
Product Group S Port Multi-Drop Cablelok

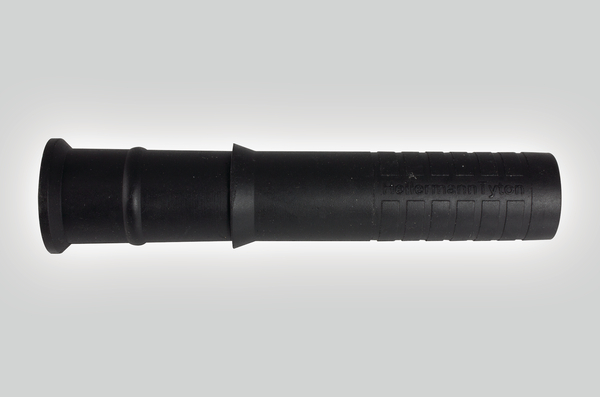

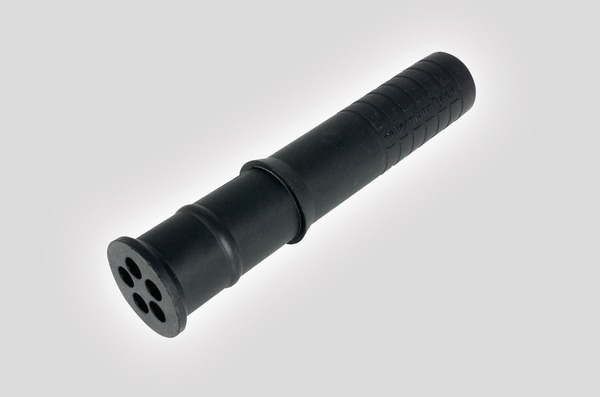

Technical Description The S Port Multi-Drop Cablelok is a meachnical seal manufactured from Polychloropene. This cablelok fits in to a single S Port on the HellermannTyton closures converting it from a single cable drop port to a 5 cable drop port for cables with a diameter range of 6.8mm - 7.2mm
Suitable for Cable ∅ from/to 6.8 - 7.2mm
Material Chloroprene rubber (CR)
Material CR
Country of Origin GB
Customs Number 40091100
EAN / GTIN 5022660134234
Label Design Network_Connectivity
Label Type HT Standard 75x100
Pack Cont. 10
Package dimensions calculated (LengthxWidthxHeight)
Customer Order Codes (merged) HLR85750229
ETIM 6.0 EC002609
ETIM 7.0 Key EC002609
shown on website Automotive (English), HTData (English), com Internet, China (English), Great Britain, China (Mandarin), United States of America
UNSPSC Key 43202218
