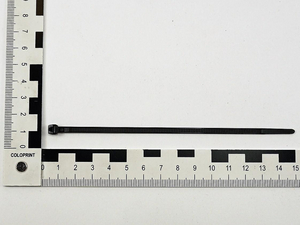

Cable tie outside serrated, 145.0x3.4mm, ⌀1.6-35.0mm, black, 100pcs.
Art.-No. 118-04800
| T30ROS-PA66HS-BK
|
Copied
- Outside serrated cable tie with smooth surface to the bundle
- Tie follows the contours of the cable bundle perfectly
- Takes up less space due to curved head design
- Easy insertion combined with high tensile strength
- PA46 material for higher temperatures up to +195 °C (500 h)
- PA66V0 cable ties fulfill Limited Fire Hazard requirements
- Easy application either manually or with a processing tool
Request your individual offer now
Request quote
More products in this product group:
| Application | OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and electrical industry. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Local order number | T30ROS.HB3P |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T30ROS-PA66HS-BK |

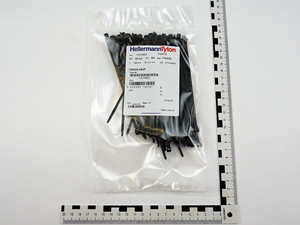

| Pack Cont. | 100pcs. |
| Package Content packed in | Pack |
| Product Family | OS-Series |
| Product Group | Cable ties for thin-walled bundles |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie outside serrated 145x3.4 mm, heat stabilised, black |
| Tie Closure | plastic pawl |
| Type | T30ROS |
| Variant | Outside Serrated |
|
|
| Bundle ⌀ | 1.6-35.0mm |
| Bundle ⌀ max. | 35.0mm |
| Bundle ⌀ min. | 1.6mm |
| Cable Tie Head Height (metric) | 4.5mm |
| Cable Tie Head Length (metric) | 5.7mm |
| Cable Tie Head Width (metric) | 6.1mm |
| Length (L) | 145.0mm |
| Min.Tensile Strength | 135N |
| Strap Width max. (G) (imperial) | 0.24" |
| Thickness (T) | 1.2mm |
| UV-Stabilised | No |
| Weight/Unit | 0.000699kg |
| Width (W) | 3.4mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Nato number | 5975-12-391-2217 |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660180941 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.204m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0006426m³ |
| Packaging 1 - Weight (kg) | 0.069901kg |
| Packaging 1 - Width (m) | 0.126m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 7.7921kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 176.84kg |
| Packaging 4 - Width (m) | 0.8m |
