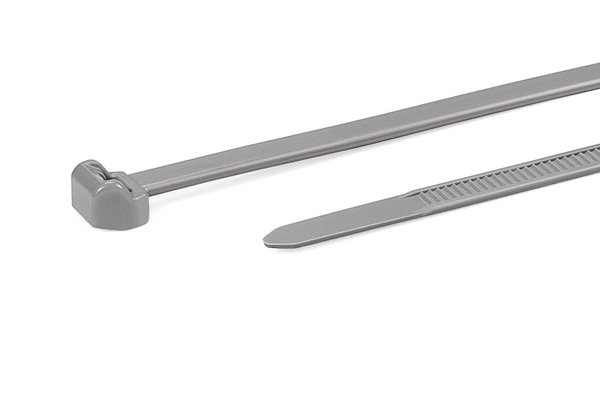

Cable Ties for thin-walled bundles T50ROS
OS-Series, Article number: 118-05078
Features
- Outside serrated cable tie with smooth surface to the bundle
- Tie follows the contours of the cable bundle perfectly
- Takes up less space due to curved head
- Easy insertion and high tensile strength
- For higher temperature or Limited Fire Hazard demand: Material PA46 or PA66V0
- Easy application either manually or with a processing tool
Certifications & Approvals
Application
OS-Series are well-proven in many areas where thin-walled or soft insulation wires and cables are being installed, e. g. automotive and aircraft industry. OS ties made from material PA66V0 are suitable for applications where safety regulations, e. g. reduction of smoke and dangerous gases, are required.
OS-Series is suitable for following markets and industries
-
Wind Energy Sector
-
Rail Transportation Sector
-
Automotive Industry
-
Electronics Industry
-
Aerospace Industry
-
Defence Industry
More products in this product group
Cable Ties for thin-walled bundles >| Application 2 | Applications - These ties are used in many areas where thin - walled or soft insulation wires and cable are being installed e.g. mass transit, data installations and electronics. |
| Application Tool | MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, EVO7, EVO7SP |
| Colour | Grey (GY) |
| Description Short (BMEcat) (max. 150 characters) | Cable Tie outside serrated 200x4.6 mm, grey |
| Features and Benefits | The ever increasing demands for tighter bundles in cable installations has led to problems with the conventional inside serrated cable tie design, causing damage to cable insulation, particularly in vibration environments. The Outside Serrated range of ties overcomes these problems offering high tensile strengths, low insertion forces and a smooth surface to the insulation minimising indentation. The curved head allows the tie to follow the contours of the cable and take up less space than other cable tie designs. |
| GLOBAL PART DESCRIPTION | T50ROS-PA46-GY |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| Product Family | OS-Series |
| Product Group | Cable Ties for thin-walled bundles |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50ROS.R16P |
| Variant | Outside Serrated |
|
|
|
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 1.6mm |
| Height (H) | 1.3mm |
| Length (L) | 200.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | Limited Fire Hazard, Low generation of toxic gases and corrosive acid, Low smoke generation, UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +150 °C |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 5022660325359 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.28m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00202m³ |
| Packaging 1 - Weight (kg) | 0.692kg |
| Packaging 1 - Width (m) | 0.24m |
| Packaging 3 - Height (m) | 0.218m |
| Packaging 3 - Length (m) | 0.599m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0522m³ |
| Packaging 3 - Weight (kg) | 14.59kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.195m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.147m³ |
| Packaging 4 - Weight (kg) | 312.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.692kg |
| ETIM 5.0 | EC000046 |
| ETIM 6.0 | EC000046 |
| UNSPSC Key | 39121703 |
