For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

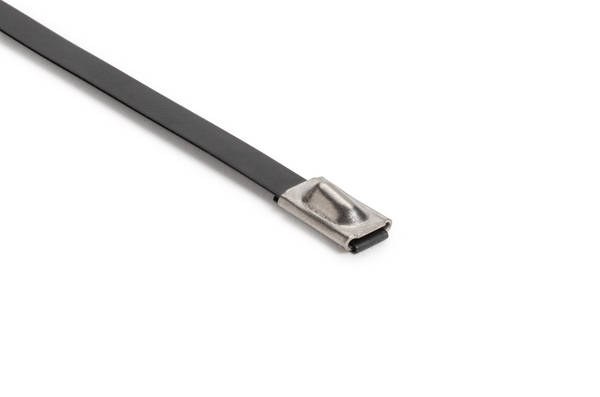

Stainless steel cable tie, ball bearing lock, 362x4.6mm, Ø17-102mm, black, 100pcs.
Art.-No. 111-00290 | MBT14SFC-SS316L/SP-BK Details

  • Fully coated MBT, made from type 316 stainless steel with polyester coating
  • Non-releasable locking feature
  • Coated cable tie with smooth edges
  • Comfortable handling and installation
  • Eliminates contact corrosion between dissimilar materials during application
Show more

Request your individual offer now

Application Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures. These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling.
Application Tool KST-STG200, HDT16, MK9SST, MK9PSST
Colour Black (BK)
Identification Plate Position none
Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Key product features vibration absorbing
Local order number MBT14SFC.M3P
Material Stainless Steel (SS316L), Polyester (SP)
PART DESCRIPTION MBT14SFC-SS316L/SP-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family MBT-FC-Series
Product Group Cable Ties with Ball-Lock and Coating
Releasable Closure (Yes/No) No
Short Description Metal Cable Tie with Ball-Lock and Coating 362x4.6 mm black
Tie Closure ball bearing lock
Type MBT14SFC
Variant Not Serrated
Bundle Diameter max (metric) 102mm
Bundle ∅ 17-102mm
Bundle ∅ min. 17mm
Length (L) 362mm
Min.Tensile Strength 540N
Thickness (T) 0.38mm
Weight/Unit 0.004472kg
Width (W) 4.6mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning (except coating)
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Operating Temperature Coating -50 °C to +150 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660311994
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.46m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00115
Packaging 1 - Weight (kg) 0.4582kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 18.748kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 0.705m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.677
Packaging 4 - Weight (kg) 470.952kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
