For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Cable Ties with Ball-Lock and Coating : MBT20HFC

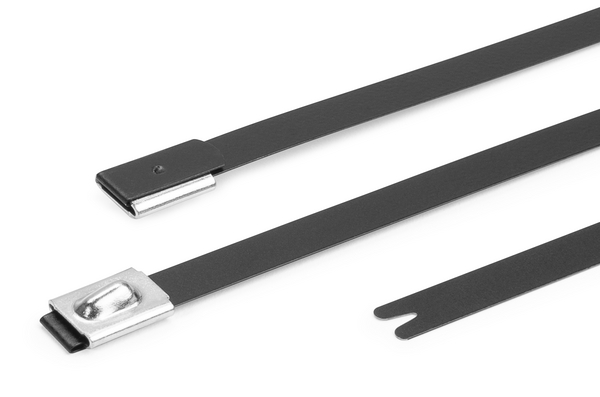

Metal Cable Tie with Ball-Lock and Coating 521x7.9 mm blackArticle number: 111-00296
Features
- Fully coated MBT, made from type 316 stainless steel with polyester coating
- Non-releasable locking feature
- Coated cable tie with smooth edges
- Comfortable handling and installation
- Eliminates contact corrosion between dissimilar materials during application
Certifications & Approvals
Application

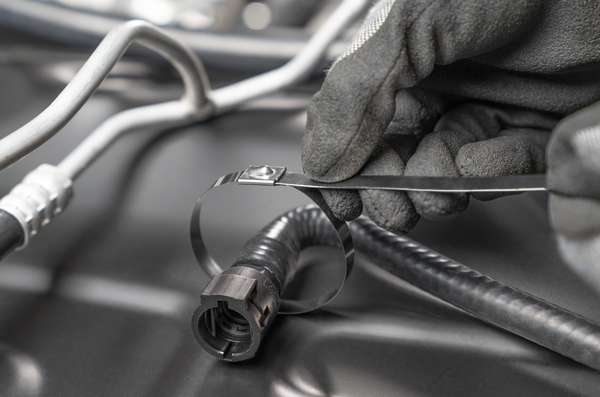

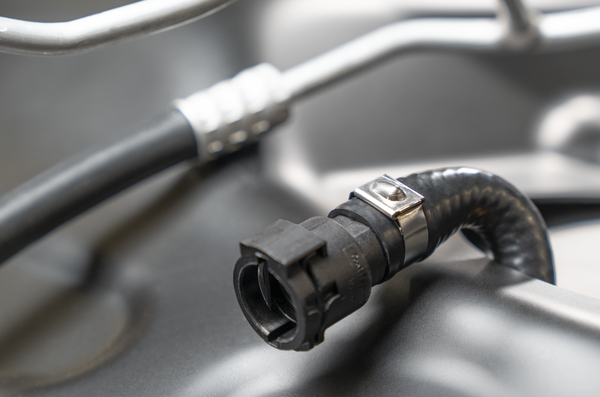

Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures.
These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling.
More products in this product group
Cable Ties with Ball-Lock and Coating >| Application Tool | KST-STG200, HDT16, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Pack Cont. | 50pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | MBT20HFC-SP/SS316-BK |
| Product Family | MBT-FC-Series |
| Product Group | Cable Ties with Ball-Lock and Coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Cable Tie with Ball-Lock and Coating 521x7.9 mm black |
| Tie Closure | ball bearing lock |
| Type | MBT20HFC.M2P |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 152mm |
| Bundle ∅ min. | 17mm |
| Length (L) | 521mm |
| Min.Tensile Strength | 1020N |
| Thickness (T) | 0.38mm |
| Width (W) | 7.9mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyester (SP), Stainless Steel (SS316) |
| Nato number | 5975-12-411-0233 |
| Operating Temperature - °C | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660312236 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.389m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00123m³ |
| Packaging 1 - Weight (kg) | 0.58kg |
| Packaging 1 - Width (m) | 0.09m |
| Weight | 0.58kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
