For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

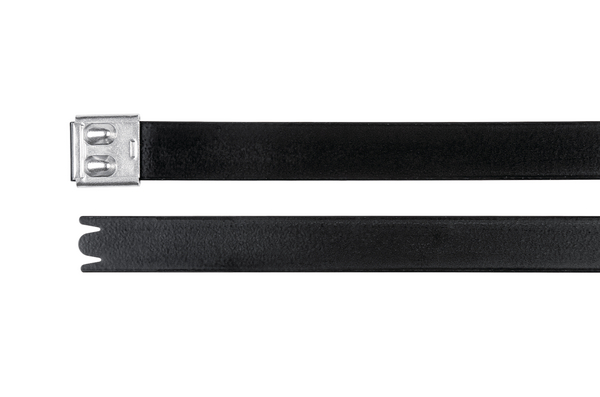

Stainless steel cable tie, ball bearing lock, 521x12.3mm, Ø17-152mm, black, 50pcs.
Art.-No. 111-00300 | MBT20XHFC-SS316L/SP-BK Details

  • Fully coated MBT, made from type 316 stainless steel with polyester coating
  • Non-releasable locking feature
  • Coated cable tie with smooth edges
  • Comfortable handling and installation
  • Eliminates contact corrosion between dissimilar materials during application
Show more

Request your individual offer now

Application Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures. These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling.
Application Tool KST-STG200, HDT16, MK9SST, MK9PSST
Colour Black (BK)
Identification Plate Position none
Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Key product features vibration absorbing
Local order number MBT20XHFC.M2P
Material Stainless Steel (SS316L), Polyester (SP)
PART DESCRIPTION MBT20XHFC-SS316L/SP-BK
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family MBT-FC-Series
Product Group Cable Ties with Ball-Lock and Coating
Releasable Closure (Yes/No) No
Short Description Metal Cable Tie with Ball-Lock and Coating 521x12.3 mm black
Tie Closure ball bearing lock
Type MBT20XHFC
Variant Not Serrated
Bundle Diameter max (metric) 152mm
Bundle ∅ 17-152mm
Bundle ∅ min. 17mm
Length (L) 521mm
Min.Tensile Strength 1620N
Thickness (T) 0.38mm
Weight/Unit 0.0175kg
Width (W) 12.3mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning (except coating)
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Operating Temperature Coating -50 °C to +150 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660312281
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.548m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00235
Packaging 1 - Weight (kg) 0.875001kg
Packaging 1 - Width (m) 0.078m
Packaging 3 - Height (m) 0.145m
Packaging 3 - Length (m) 0.415m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0193
Packaging 3 - Weight (kg) 9.25001kg
Packaging 3 - Width (m) 0.32m
Packaging 4 - Height (m) 1.16m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 21000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.114
Packaging 4 - Weight (kg) 409.5kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
