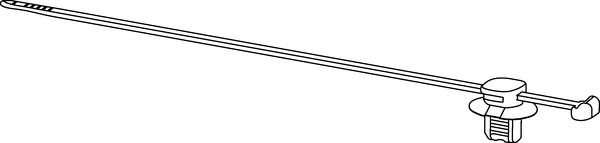

Fixing tie for hole (oval), inside serrated, Ø3.0-73.0mm, black, 200pcs.
Art.-No. 156-00105 | LK2A1DOP62x122-PA66HIR/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt

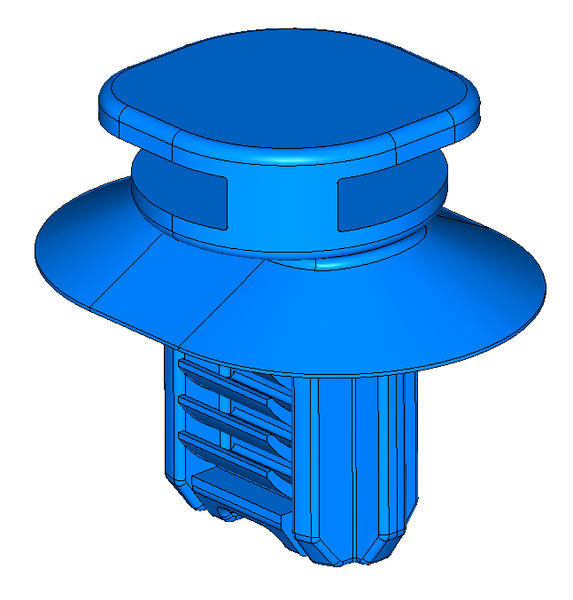

  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • DOP versions for oval holes feature anti-twist protection
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Local order number LK2A1DOP62x122.HIRHSBMTTP
Material Polyamide 6.6, high impact modified (PA66HIR), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 200pcs.
Package Content packed in Bag
PART DESCRIPTION LK2A1DOP62x122-PA66HIR/PA66HIRHS-BK
Product Family for oval holes
Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc, for Oval Holes
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 73.0mm
Bundle ∅ 3.0-73.0mm
Bundle ∅ min. 3.0mm

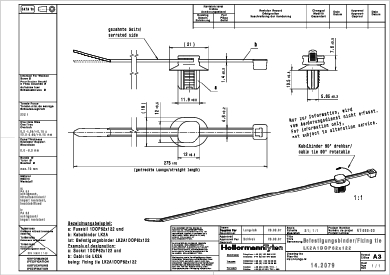

for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.6 - 6 mm
Length (L) 270.0mm
Min.Tensile Strength 225N
Strap Width max. (G) 4.8mm
Weight/Unit 0.002989kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026290980
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00577
Packaging 1 - Weight (kg) 0.597801kg
Packaging 1 - Width (m) 0.195m
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 1400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.036
Packaging 3 - Weight (kg) 4.679607kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 33600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002
Packaging 4 - Weight (kg) 133.31kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
