Fixing tie for hole (oval), inside serrated, ∅73mm, black, 500pcs.
Art.-No. 156-01208 | LK2AFT62x122A-PA66HIRHS-BK Details

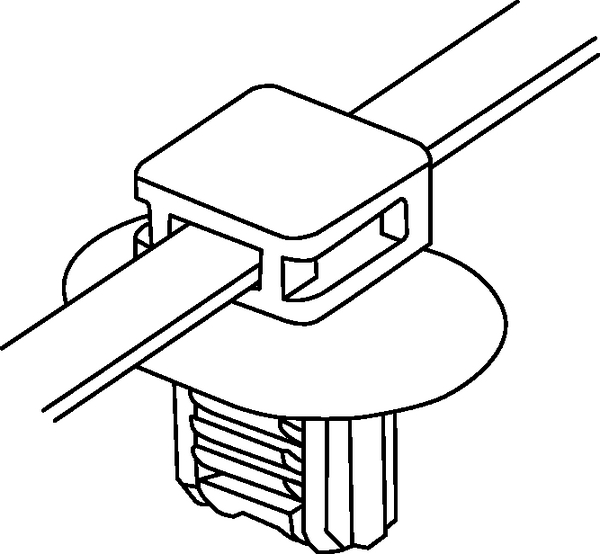

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • DOP versions for oval holes feature anti-twist protection
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree for oval holes
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Local order number 156-01208
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION LK2AFT62x122A-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family for oval holes
Product Group 2-piece fixing ties with fir tree, with disc
Tie Closure plastic pawl
Type LK2AFT62x122A
Bundle Diameter max (metric) 73mm
Bundle ∅ 73mm
Disc ∅ 16.0 x 21.0mm
Length (L) 275mm
Min.Tensile Strength 225N
Thickness (T) 1.4mm
Weight/Unit 0.00272kg
Width (W) 4.6mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.6 - 5 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026478005
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01073
Packaging 1 - Weight (kg) 1.360001kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 6.190004kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 32000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 120.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
