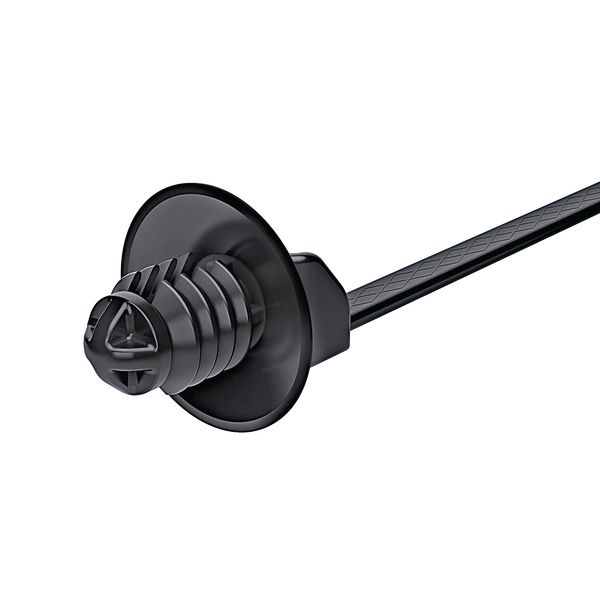

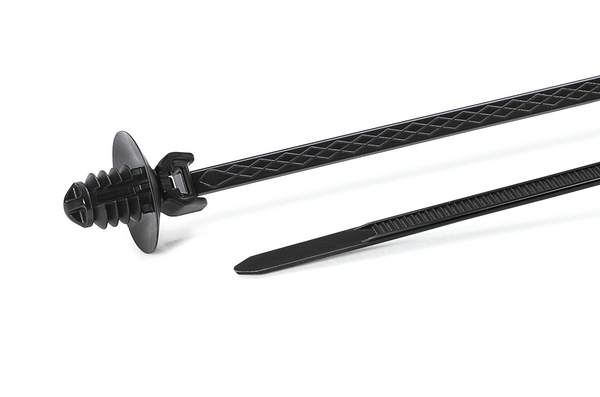

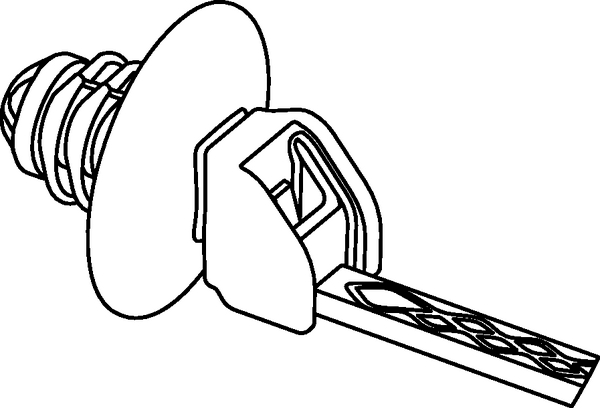

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes : T30SOS-AS-FT6-E

1-piece fixing ties with fir tree, with disc, for round holes 129.4x3.45 mm, heat stabilised, black, Article number: 157-00243

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Fixation Method Fir Tree
Identification Plate Position none
Pack Cont. 1500pcs.
Package Quantity per Bag
PART DESCRIPTION T30SOS-AS-FT6-E-PA66HS-BK
Product Family Fir Tree Parts FT6
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Short Description 1-piece fixing ties with fir tree, with disc, for round holes 129.4x3.45 mm, heat stabilised, black
Tie Closure plastic pawl
Type T30SOS-AS-FT6-E-PA66HS-BK
Bundle ∅ max. 25mm
Disc ∅ 16mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.6 - 4 mm
Length (L) 129.4mm
Min.Tensile Strength 200N
Width (W) 3.45mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Specifications
EAN / GTIN 4031026519791
Packaging 1 - Qty 1500
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 1.494216kg
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 6.796864kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 102.552kg
Packaging 4 - Width (m) 0.8m
Weight 1.41kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
