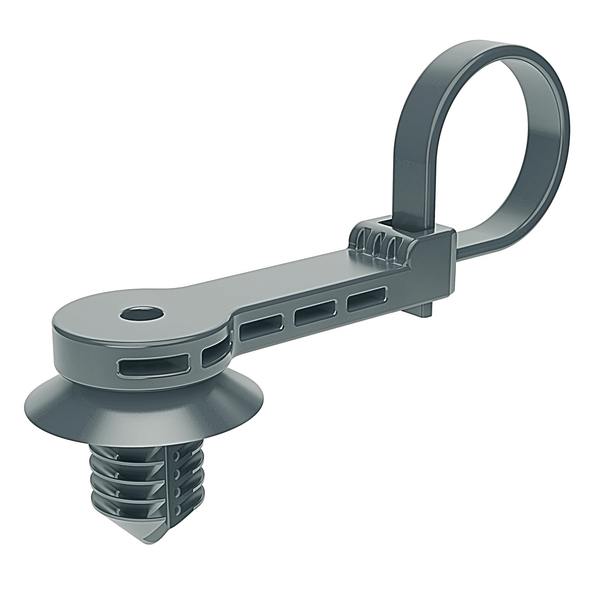

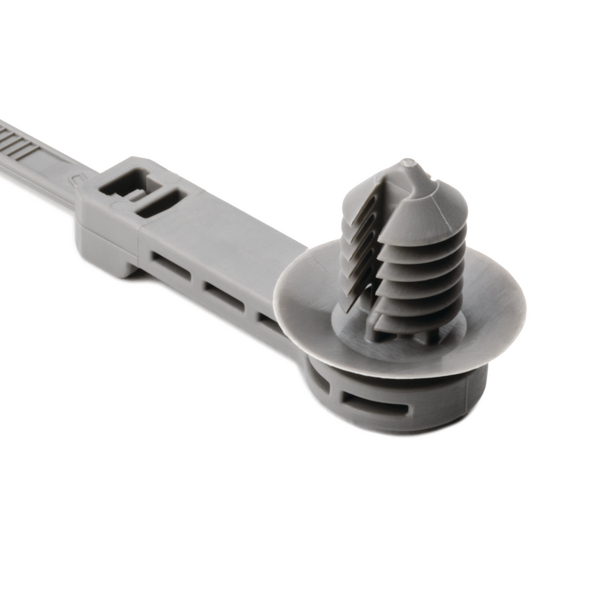

Fixing tie for hole (round), outside serrated, ∅2.0-50.0mm, grey, 500pcs.
Art.-No. 157-00120
| T50ROSFT8SO25A-PA66HIRHS-GY
|
Details
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
Request your individual offer now
Request quote
More products in this product group:
Colour | Grey (GY) |
Fixation Method | Fir tree for round holes |
Identification Plate Position | none |
Local order number | 157-00120 |
Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | T50ROSFT8SO25A-PA66HIRHS-GY |
Pack Cont. | 500pcs. |
Package Content packed in | Bag |
Product Family | With offset 12.5 and 25.0 mm |
Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes |
Releasable Closure (Yes/No) | No |
Short Description | 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes |
Type | T50ROSFT8SO25A |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ | 2.0-50.0mm |
Bundle ∅ min. | 2.0mm |
Disc ∅ | 19.0mm |
Height (H) | 22.30mm |
Length (L) | 230.0mm |
Length (L2) | 25.0mm |
Min.Tensile Strength | 225N |
Offset Length | 25.0mm |
Panel Thickness max. | 0.6 - 6.65mm |
Weight/Unit | 0.003084kg |
Width (W) | 5.1mm |
for Hole ∅ (FH) | 7.6 - 8.4 mm |
for Panel Thickness min - max | 0.6 - 6.7 mm |
for Panel Thickness min - max | 0 - 0.3 " |
CE Certification | No |
CSA Certified | No |
ELV compliant Dir. Art. 4 (2) | YES |
Flammability | UL 94 V2 |
Hazardous Goods | No |
Operating Temperature | -40 °C to +110 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
Country of Origin | US |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026440842 |
Packaging 1 - Height (m) | 0.125m |
Packaging 1 - Length (m) | 0.335m |
Packaging 1 - Qty | 500 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.01256m³ |
Packaging 1 - Weight (kg) | 1.542001kg |
Packaging 1 - Width (m) | 0.3m |
Packaging 3 - Height (m) | 0.37465m |
Packaging 3 - Length (m) | 0.59055m |
Packaging 3 - Qty | 3000 |
Packaging 3 - Type | Box |
Packaging 3 - Volume (m³) | 0.0646m³ |
Packaging 3 - Weight (kg) | 10.072006kg |
Packaging 3 - Width (m) | 0.2921m |
Packaging 4 - Height (m) | 1.269m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 36000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.218m³ |
Packaging 4 - Weight (kg) | 141.864kg |
Packaging 4 - Width (m) | 0.8m |
