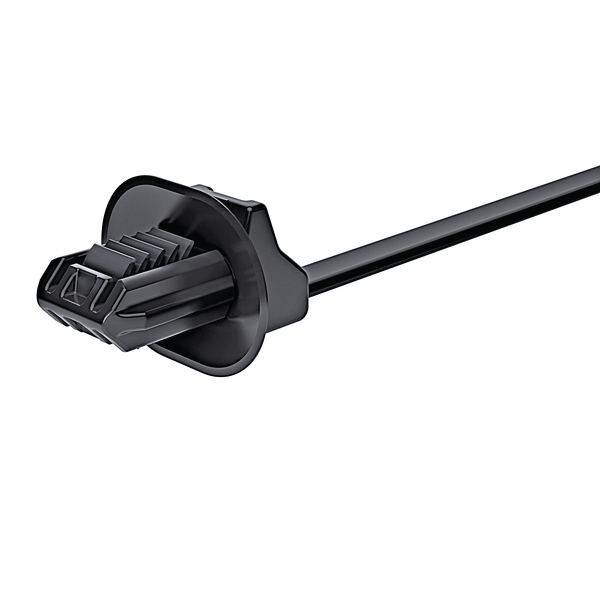

Fixing tie for hole (oval), outside serrated, Ø1.5-35.0mm, black, 1500pcs.
Art.-No. 157-00016 | T50SOS3DOP65X130-E-PA66HS-BK Details

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Local order number T50SOS3DOP65x130-E-PA66HS-BK-C1
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOS3DOP65X130-E-PA66HS-BK
Pack Cont. 1500pcs.
Package Content packed in Bag
Product Family for oval holes
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOS3DOP65X130-E
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.5-35.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 16.0 x 21.0mm
Fixing Hole Shape Oval
Height (H) 1.3mm
Length (L) 165.0mm
Min.Tensile Strength 180N
Panel Thickness max. 0.7 – 5.0mm
Thickness (T) 1.3mm
Weight/Unit 0.0021kg
Width (W) 4.6mm
for Hole ∅ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 0.7 - 5 mm
for Panel Thickness min - max 0 - 0.2 "
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026277189
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.55m
Packaging 1 - Qty 1500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0715
Packaging 1 - Weight (kg) 3.208576kg
Packaging 1 - Width (m) 0.65m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 13.934304kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 132.488kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
