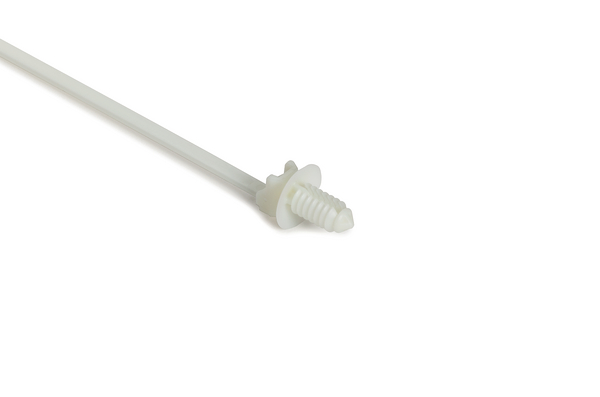

Fixing tie for hole (round), outside serrated, ⌀1.0-35.0mm, grey, 4000pcs.
Art.-No. 157-00303
| T50SOSFT6.5LG-E4-PA66HS-GY
|
Copied
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing. |
| Colour | Grey (GY) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Key product features | products for automatic tools |
| Local order number | 157-00303 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SOSFT6.5LG-E4-PA66HS-GY |
| Package Content | 4000pcs. |
| Package Content packed in | Pack |
| Product Family | Fir tree parts FT6 |
| Product Group | 1-piece fixing ties with fir tree, with disc, for round holes |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing tie for hole (round), outside serrated, ⌀1.0-35.0mm, grey, 4000pcs. |
| Tie Closure | plastic pawl |
| Type | T50SOSFT6.5LG-E4 |
| UV-Stabilised | No |
| Weight/Unit | 0.00193kg |
|
|
| Bundle ⌀ | 1.0-35.0mm |
| Bundle ⌀ max. | 35.0mm |
| Bundle ⌀ min. | 1.0mm |
| Disc ⌀ | 16.0mm |
| Length (L) | 168.0mm |
| Length of Fir Tree | 15.3mm |
| Panel Thickness | 0.6 - 8.25mm |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| for Hole ⌀ (FH) | 6.35 mm (hexagonal), 6.5 mm |
| for Panel Thickness min - max | 0.6 - 8.3 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
Download
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026577296 |
| Packaging 1 - Qty | 4000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 7.720001kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 8.540001kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.263m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.212m³ |
| Packaging 4 - Weight (kg) | 123.48kg |
| Packaging 4 - Width (m) | 0.8m |
