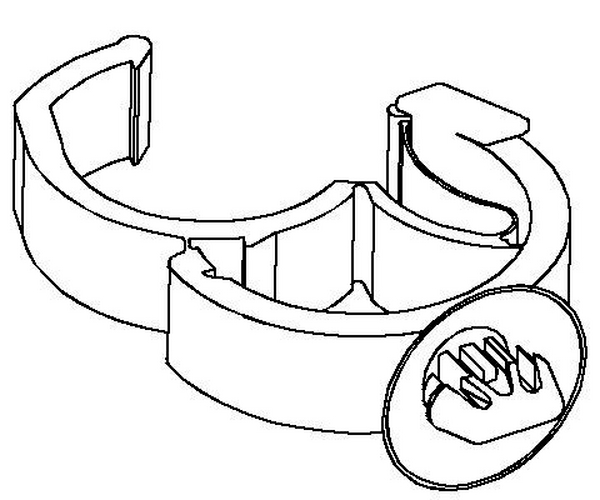

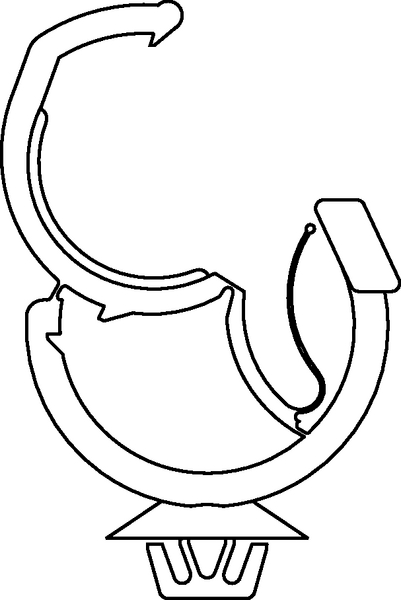

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=19.0mm, Dmax=28.0mm
Art.-No. 151-00370 | AHC3BHR-PA66HIRHS-BK Details

  • Push and click closure for fixing of wires
  • Clip is clicked into a specific hole
  • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

Request your individual offer now

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features for faster processing, for multiple routing, lockable
Local order number 17509
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION AHC3BHR-PA66HIRHS-BK
Pack Cont. 400pcs.
Package Content packed in Carton
Product Family AHC-Series
Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
Short Description Bundling Clip 40x10 mm, automatic locking, high impact modified, heat stabilised, black
Type AHC3BHR
Attach to Ø 19.0 - 28.0
Bundle Diameter max (metric) 28.0mm
Bundle ∅ 19.0-28.0mm
Bundle ∅ min. 19.0mm
Disc ∅ 24.0mm
Length (L) 47.4mm
Length (L2) 7.0mm
Weight/Unit 0.008326kg
Width (W) 14.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026313108
Packaging 1 - Height (m) 0.16m
Packaging 1 - Length (m) 0.392m
Packaging 1 - Qty 400
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01831
Packaging 1 - Weight (kg) 3.3984kg
Packaging 1 - Width (m) 0.292m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.024
Packaging 3 - Weight (kg) 3.8184kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 173.736kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
