08/11/2024

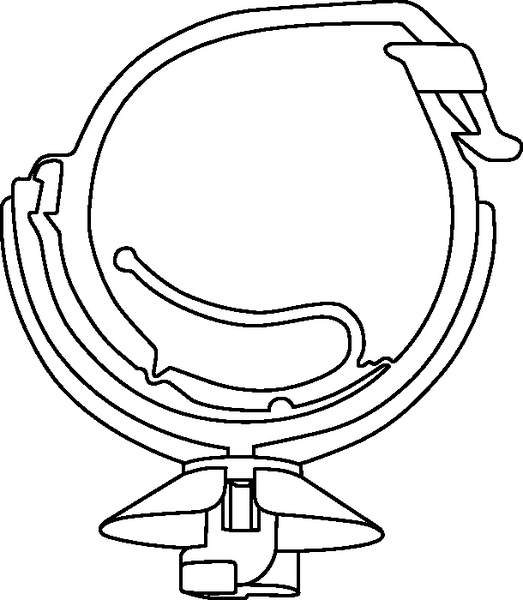

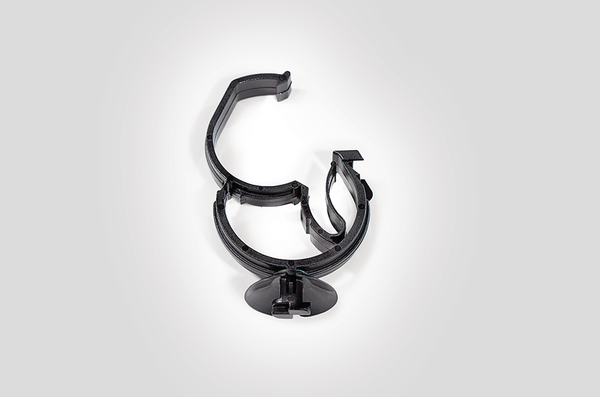

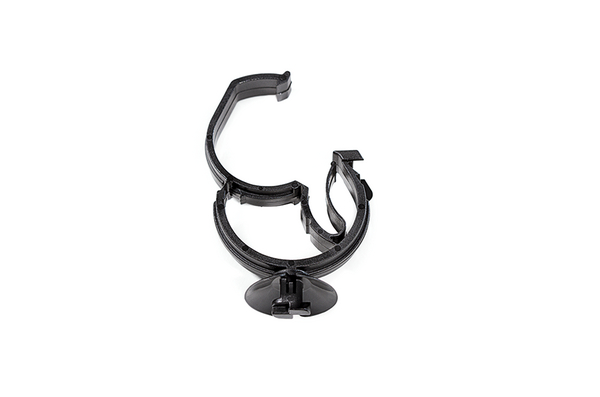

Cable clip for hole (oval), T=1.8 - 4.8mm, ∅6.2 x 12.2 mm, Dmin=19.0mm, Dmax=28.0mm
Art.-No. 151-00928 | AHC3EH2-PA66HIRHS-BK Details

  • Attached to panel before cable installation
  • Simply push cable into place to activate automatic locking feature
  • Parts marked 'I' are interlockable for more installation options
  • Meaning of extensions:
  • SS & SB = for fir-tree stud Ø 5mm
  • T = for stud Ø 5mm or IAHC type of Automatic Harness Clips
Show more

Request your individual offer now

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features lockable, for faster processing, releasable, vibration absorbing
Local order number 151-00928
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION AHC3EH2-PA66HIRHS-BK
Pack Cont. 800pcs.
Package Content packed in Box
Product Family AHC-Series
Product Group Automatic Harness Clip PA66HIRHS AHC3EH2
Short Description Bundling Clip 44,2x11 mm, automatic locking, heat stabilised, high impact modified, black
Type AHC3EH2
Bundle Diameter max (metric) 28.0mm
Bundle ∅ 19.0-28.0mm
Bundle ∅ min. 19.0mm
Disc ∅ 24.0mm
Length (L) 44.2mm
Length (L2) 5.2mm
Panel Thickness max. 1.8 - 4.8mm
Weight/Unit 0.007kg
Width (W) 11.0mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 1.8 - 4.8 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026436029
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 800
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.024
Packaging 1 - Weight (kg) 5.6kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 800
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.46kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.119m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.074
Packaging 4 - Weight (kg) 150.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
