Cable clip for hole (oval), T=0.5 - 3.5mm, ∅6.2 x 12.2 mm, Dmin=12.0mm, Dmax=16.0mm
Art.-No. 151-00423 | HC140SFT62x122-PA6HIR-BK Details

Request your individual offer now

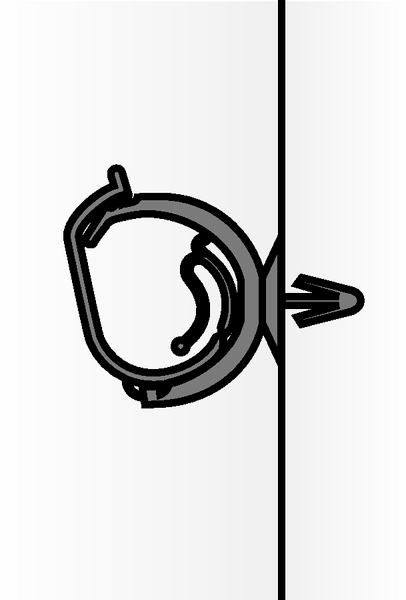

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Local order number 17508
Material Polyamide 6, high impact modified (PA6HIR)
PART DESCRIPTION HC140SFT62x122-PA6HIR-BK
Pack Cont. 1200pcs.
Package Content packed in Bag
Product Family AHC-Series
Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature

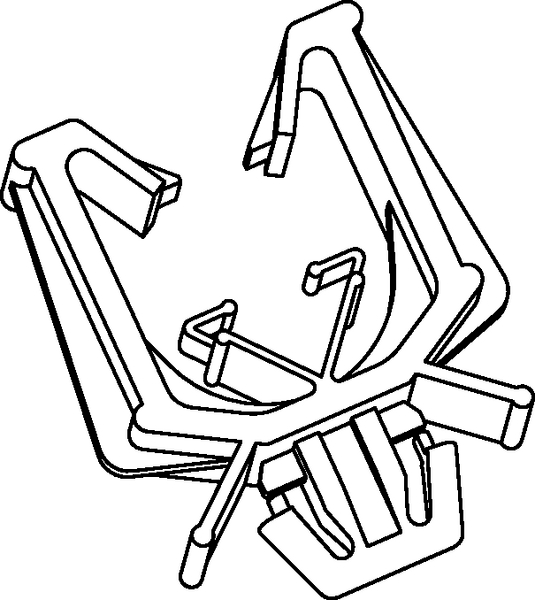

Short Description Harness Clip, open, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, black
Type HC140SFT62x122
Bundle Diameter max (metric) 16.0mm
Bundle ∅ 12.0-16.0mm
Bundle ∅ min. 12.0mm
Height (H) 26.0mm
Height (H2) 36.5mm
Length (L) 30.0mm
Panel Thickness max. 0.5 - 3.5mm
Width (W) 14mm
for Hole ∅ (FH) 6.2 x 12.2 mm
for Panel Thickness min - max 0.5 - 3.5 mm
Flammability UL 94 HB
Operating Temperature -40 °C to +80 °C, (+105 °C, 500 h)
Country of Origin FR
GTIN-13 / EAN 4031026710914
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
