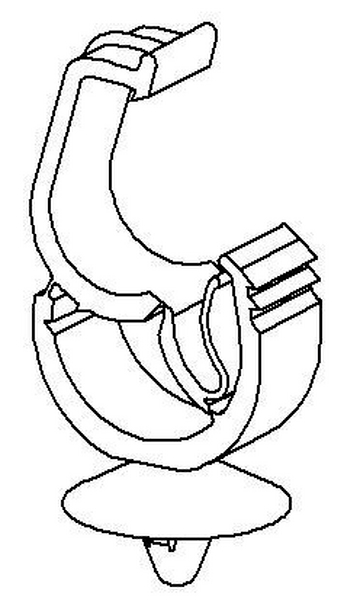

Cable clip for hole (round), ∅6.5 mm, Dmin=27.0mm, Dmax=41.5mm
Art.-No. 151-00374 | AHC4AH-PA66HIRHS-BK Details

  • Push and click closure for fixing of wires
  • Clip is clicked into a specific hole
  • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

Request your individual offer now

Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour Black (BK)
Key product features for faster processing, for multiple routing, lockable
Local order number 17428
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION AHC4AH-PA66HIRHS-BK
Pack Cont. 400pcs.
Package Content packed in Box
Product Family AHC-Series
Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
Short Description Harness clip 61.3x13.5 mm, automatic locking, high impact modified, heat stabilised, black
Type AHC4AH
Bundle Diameter max (metric) 41.5mm
Bundle ∅ 27.0-41.5mm
Bundle ∅ min. 27.0mm

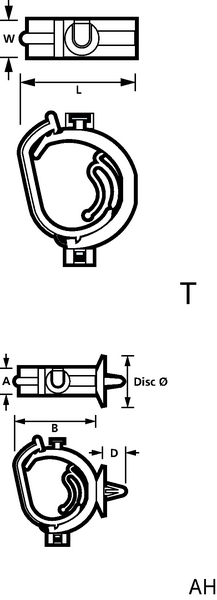

Disc ∅ 24.0mm
Length (L) 60.5mm
Length (L2) 7.5mm
Weight/Unit 0.0101kg
Width (W) 15.9mm
for Hole ∅ (FH) 6.5 mm
for Panel Thickness min - max 0.8 - 2.7 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026313139
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.036
Packaging 3 - Weight (kg) 4.535kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 9600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002
Packaging 4 - Weight (kg) 129.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
