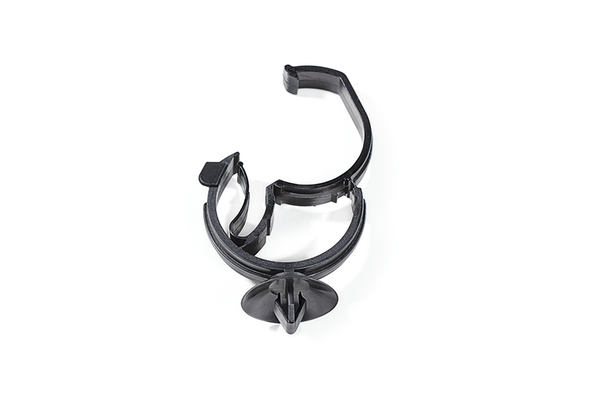

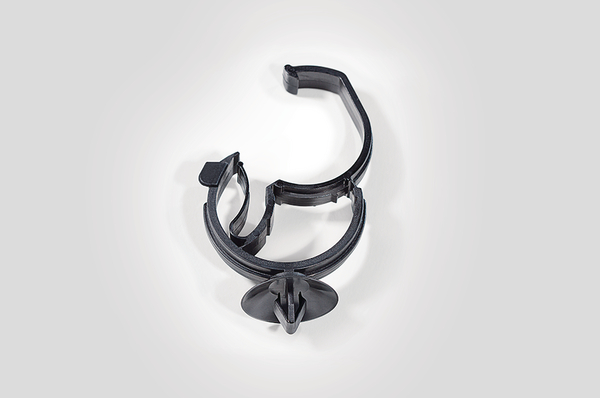

Cable clip for hole (oval), ⌀6.2 x 12.2 mm, Dmin=19mm, Dmax=28mm
Art.-No. 151-00937 | AHC3CH2-PA66HIRHS-BK |

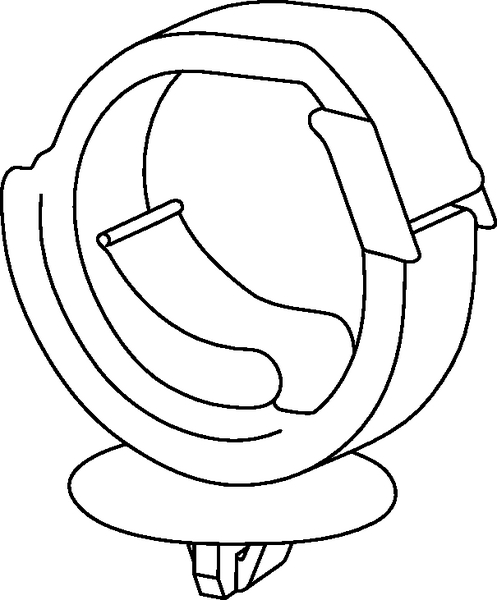

Automatic Harness Clip AHC3CH2 closed.

Push and click closure for fixing of wires
Clip is clicked into a specific hole
AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Fixing Elements for Tubes and Harnesses with Automatic Locking Feature >

Base Data

Application	Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour	Black (BK)
Key product features	for faster processing, for multiple routing, lockable
Local order number	151-00937
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	AHC3CH2-PA66HIRHS-BK
Package Content	450pcs.
Package Content packed in	Box
Product Family	AHC-Series
Product Group	Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
Short Description	Harness Clip, automatic close, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, heat stabilised, black
Type	AHC3CH2

Product Dimensions


Bundle ⌀	19-28mm
Bundle ⌀ max.	28mm
Bundle ⌀ min.	19mm
Disc ⌀	24mm
Length (L)	44.1mm
Length (L2)	7.8mm
Width (W)	11mm
for Hole ⌀ (FH)	6.2 x 12.2 mm
for Panel Thickness min - max	0.7 - 2.5 mm

Downloads

Specifications

Hazardous Goods

No

Logistics and Packaging

Country of Origin	FR
Customs Number	39269097
GTIN-13 / EAN	4031026438634

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305
