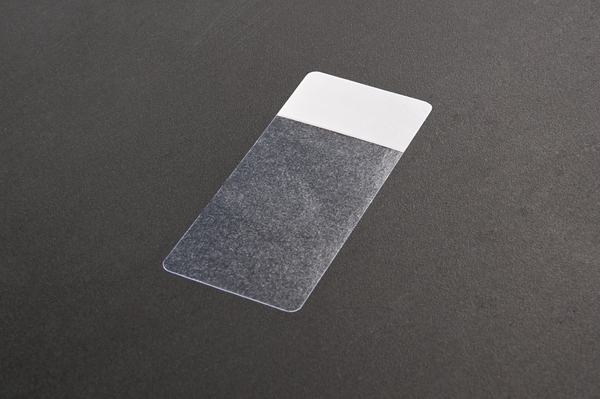

Cable label, self laminating, white/transparent, thermal transfer print, 12.70x12.70mm, H2=36.50mm, 5000pcs.
Art.-No. 596-02896 | TAG2TD6-896-CL/WH Details

  • High-quality self-laminating labels

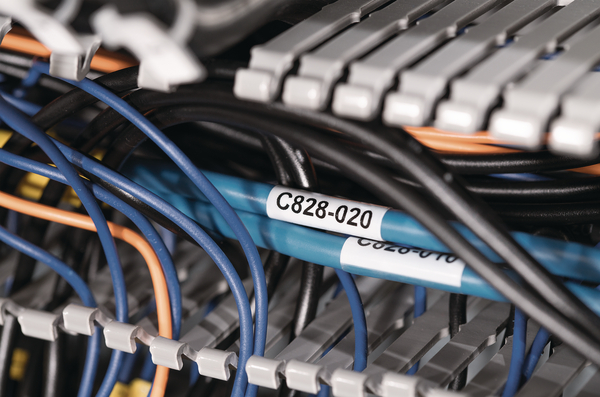

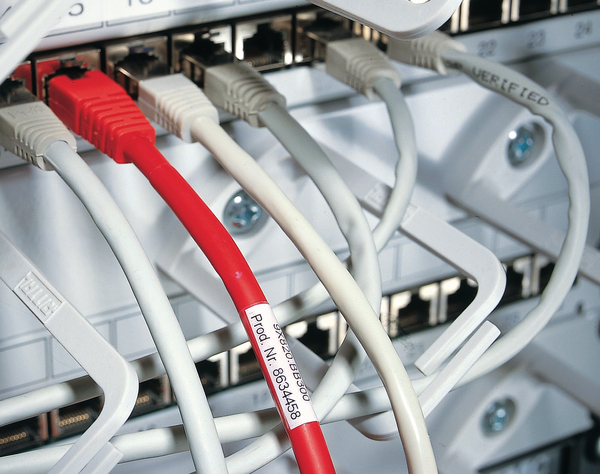

  • Suitable for marking of wires and cables
  • Laminating function gives excellent protection against humidity and mechanical abrasion
  • Rounded edge design gives additional bonding strength
  • Other colours available on request
Show more

Request your individual offer now

e-Learning
Application The specially formulated adhesive labels give the highest quality print clarity when printed on thermal transfer printers. The range of materials and ribbons have been developed to suit the needs of most users. Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties flame retardant, resistant to oils, water and wide range of solvents.
Colour White (WH), Transparent (CL)
Colour Marking Field White (WH)
Local order number TAG2TD6-896
Material Type 896, Vinyl (896)
Mech. Material Properties permanent adhesive

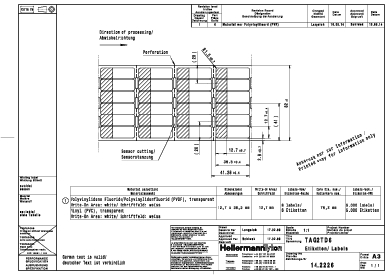

PART DESCRIPTION TAG2TD6-896-CL/WH
Pack Cont. 5000pcs.
Package Content packed in pcs.
Product Family Helatag 896
Product Group Self-laminating labels "Ladder Style", thermal transfer
Self adhesive (Yes/No) Yes
Short Description Self-laminating labels, thermal transfer 12,70x12,70x36,50 mm white-transparent
Type TAG2TD6
Variant Roller form
Bundle Diameter max (metric) 7.60mm
Bundle ∅ 3.50-7.60mm
Bundle ∅ min. 3.50mm
H printable 12.70mm
HR 12.70mm

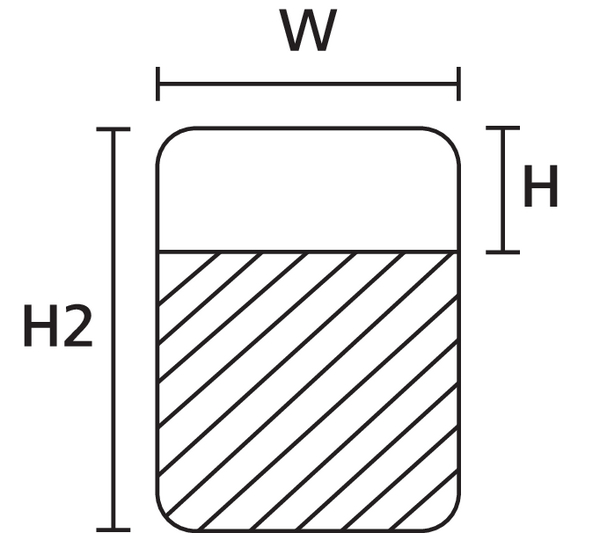

Height (H) 12.70mm
Height (H2) 36.50mm
Print Method thermal transfer print
Thickness (T) 75µm
Thickness of Foil 80
Thickness of foil test method ASTM D3652-83
VR 41.28mm
Weight/Unit 0.0001kg
Width (W) 12.70mm
Width of Liner (WL) 82.00mm
Adhesive Acrylic
Curing Temperature from +10 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 110g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +80 °C
Peel strength 550 N/m
Peel strength test method PSTC 7
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT932DOUT
Shear strength 120h
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
UL Recognized (US and Canada) Yes
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026209951
Labels per Row 6pcs.

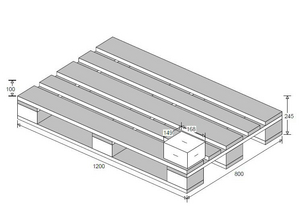

Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.165m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00223
Packaging 1 - Weight (kg) 0.500001kg
Packaging 1 - Width (m) 0.09m
Packaging 3 - Height (m) 0.24m
Packaging 3 - Length (m) 0.55m
Packaging 3 - Qty 60000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0515
Packaging 3 - Weight (kg) 6.5kg
Packaging 3 - Width (m) 0.39m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121612
