Integrated Routing Fibre Optic Splice Tray : TRAY-SE-MKII-IR-SP/3A-06

IR Single Element Splitter SE-BArticle number: 857-40644

Features

  • Positive fibre management minimum bend radius 30mm
  • 2 fibre entry ports
  • Supplied with heatshrink (3A) and splitter/3A bridge inserts
  • Black tray colour provides high contrast to standard fibre management trays
  • Maximum splice capacity of 14 fibres (heatshrink/3A)
Content 6 x IR Single Element MKII Trays, 6 x Heatshrink (3A) splice protector holders and 6 x PLC Splitter/3A holders
Pack Cont. 6pcs.
PART DESCRIPTION TRAY-SE-MKII-IR-SP/3A-06
Product Family IR Single Element Splitter SE-B
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 6

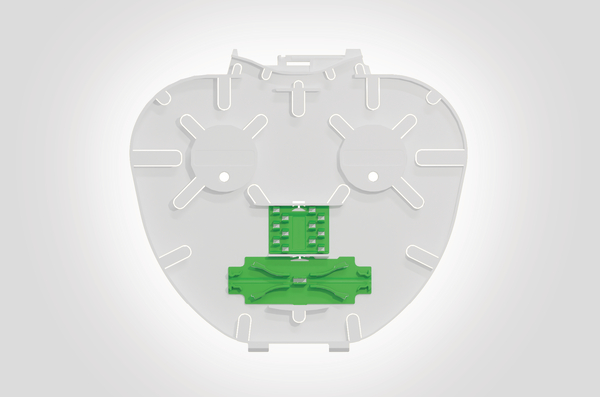

Technical Description The Integrated Routing (IR) single element tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 150 x 124 x 7mm. The IR single element tray is fitted with 1 x 3A splice protector holder and 1 x PLC Splitter/3A splice protector holder at the front of the tray for ease of fibre measurement and installation. The maximum splice capacity of the tray is14 double stacked heatshrink (3A) splice protectors up to 60mm long. The IR single element tray is suitable for use in the UFC-IR, FDN-IR or FML-IR closures.
Type of Tray Integrated Routing SE/BK
Depth (D) 7mm
Height (H) 124mm
Width (W) 148mm
Material Acrylonitrile Butadiene Styrene (ABS)
EAN / GTIN-13 5022660174803
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.3kg
ETIM 6.0 EC001123
ETIM 7.0 Key EC001123
