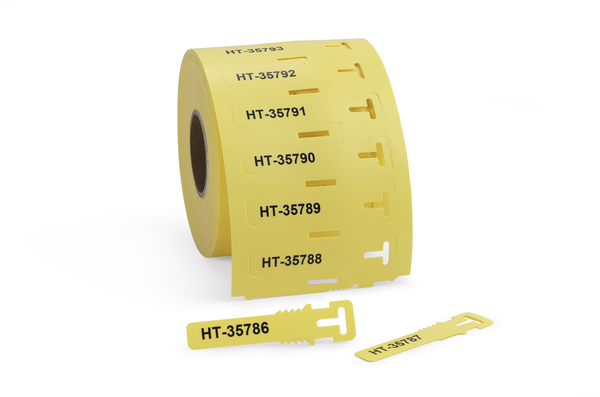

Identification tags for cable bundle ladder style loop version TAGPU 12x74 mm yellow 500 pcs./reel
Art.-No. 556-80585 | TAGPU12X74-LOOP-PUR-YE Details

  • Using without cable ties - Cost and time savings
  • UV-stabilised
  • Robust and flexible material
  • Thermal transfer or laser beam printable
  • Available in various colours
  • Halogen Free
  • Good mechanical strength and highly flexible
  • Delivery in convenient storage boxes
Show more

Request your individual offer now

Application TAGPU LOOP is a specially designed cable marker for identifying wires and cables without using a cable tie. The markers are looped on cables and wires from 2.8 mm to 35 mm, where a permanently legible and UV resistant marking is required. The cable markers consist of a robust and flexible polyurethane material and are especially suited for harsh environments. The material has been conditioned for printing on both thermal transfer and laser beam printers. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.
Application Tool TT431, TT4030
Colour Yellow (YE)
Density 1.27 g/cm³, 23 °C (DIN EN ISO 2811-2)
Material Polyurethane (PUR)
Pack Cont. 500pcs.
Package Content packed in Reel
PART DESCRIPTION TAGPU12X74-LOOP-PUR-YE
Printable Yes
Product Family TAGPU – UV-stabilised Tiptags
Product Group Identification tags for cable bundle, "Ladder Style", thermal transfer
Short Description Identification tags for cable bundle ladder style loop version TAGPU 12x74 mm yellow 500 pcs./reel
Variant Roller form
With inner glue (Yes/No) No
Bundle Diameter max (metric) 8.0mm
Bundle ∅ 2.8-8.0mm
Bundle ∅ min. 2.8mm
H printable 12.0mm
Height (H) 12.0mm
Label Width Max (imperial) 2.91"
Label Width Min (imperial) 2.91"
Length (L) 74.0mm
Length (L2) 40.0mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Weight/Unit 0.001kg
Width (W) 74.0mm
Width of Liner (WL) 90.0mm
Width printable 74.0mm
CE Certification No
CSA Certified No
Elongation at break 400%
Elongation at break test method DIN 53504
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (3 mm)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -25 °C to +105 °C
Oxygen index 24%
Oxygen index test method ISO 4589
Recommended Ribbon Type TTRHT, TTRC+
Reel Variant ladder-style
Shelf Life 5 years
Specifications
Tensile Strength 30MPa
Test Method Tensile Strength DIN 53504
UV-Stabilised Yes
Country of Origin DK
Customs Number 39209990
GTIN-13 / EAN 4031026698670
Markers per row 1
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.116m
Packaging 1 - Qty 500
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00121
Packaging 1 - Weight (kg) 0.5kg
Packaging 1 - Width (m) 0.116m
Packaging 2 - Height (m) 0.098m
Packaging 2 - Length (m) 0.184m
Packaging 2 - Qty 500
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0032
Packaging 2 - Weight (kg) 0.618kg
Packaging 2 - Width (m) 0.178m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 39131504
