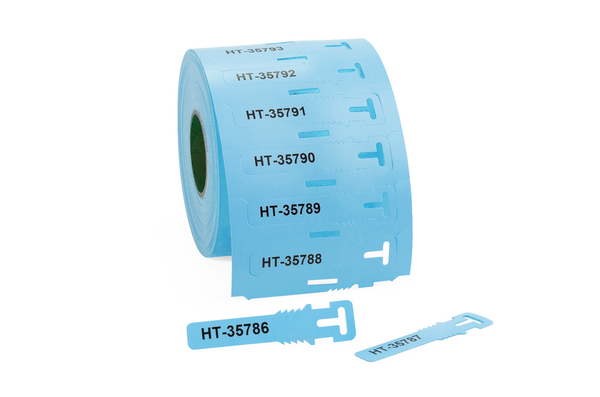

Cable tag, ladder-style, thermal transfer print, 74.0x12.0mm, blue, pack=500pcs.
Art.-No. 556-80586
| TAGPU12X74-LOOP-PUR-BU
|
Copied
- Using without cable ties - Cost and time savings
- UV-stabilised
- Robust and flexible material
- Thermal transfer or laser beam printable
- Available in various colours
- Halogen Free
- Good mechanical strength and highly flexible
- Delivery in convenient storage boxes
Request your individual offer now
Request quote
More products in this product group:
| Application | TAGPU LOOP is a specially designed cable marker for identifying wires and cables without using a cable tie. The markers are looped on cables and wires from 2.8 mm to 35 mm, where a permanently legible and UV resistant marking is required. The cable markers consist of a robust and flexible polyurethane material and are especially suited for harsh environments. The material has been conditioned for printing on both thermal transfer and laser beam printers. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device. |
| Colour | Blue (BU) |
| Density | 1.27 g/cm³, 23 °C (DIN EN ISO 2811-2) |
| Material | Polyurethane (PUR) |
| PART DESCRIPTION | TAGPU12X74-LOOP-PUR-BU |
| Package Content | 500pcs. |
| Package Content packed in | Pack |
| Print Method | thermal transfer print |
| Print Method (Alternative) | laser beam print |
| Printable | Yes |
| Product Family | TAGPU – UV-stabilised Tiptags |
| Product Group | Identification tags for cable bundle, "Ladder Style", thermal transfer |
| Short Description | Identification tags for cable bundle ladder style loop version TAGPU 12x74 mm blue 500 pcs./reel |
| Type | TAGPU12X74-LOOP |
| UV-Stabilised | Yes |
| Variant | Roller form |
| Weight/Unit | 0.001kg |
| With inner glue (Yes/No) | No |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break (min.) | 400% |
| Elongation at break test method | DIN 53504 |
| Flammability | UL 94 V0 (3 mm) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -25 °C to +105 °C |
| Oxygen index | 24% |
| Oxygen index test method | ISO 4589 |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT287 |
| Reel Variant | ladder-style |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | MIL-STD-202G Method 215K, SAE - AS81531 |
| Tensile Strength | 30MPa |
| Test Method Tensile Strength | DIN 53504 |
|
|
|
| Country of Origin | DK |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026698687 |
| Markers per row | 1 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.116m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00121104m³ |
| Packaging 1 - Weight (kg) | 0.5kg |
| Packaging 1 - Width (m) | 0.116m |
| Packaging 2 - Height (m) | 0.098m |
| Packaging 2 - Length (m) | 0.184m |
| Packaging 2 - Qty | 500 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0032m³ |
| Packaging 2 - Weight (kg) | 0.618kg |
| Packaging 2 - Width (m) | 0.178m |
