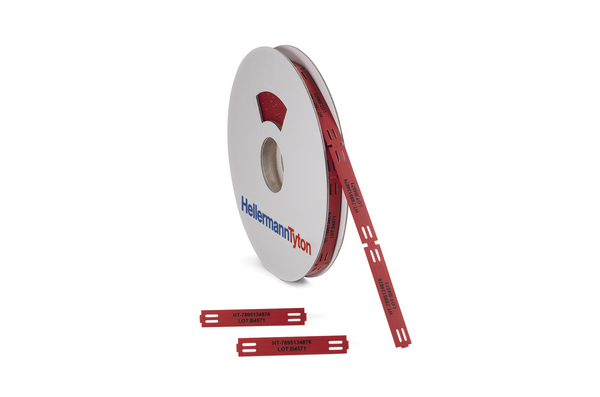

Cable marker, continuous, thermal transfer print, 100.0x11.0mm, red, reel=120pcs.
Art.-No. 556-20091 | TIPTAG11X100RD-PO-RD Details

  • Ideal for marking larger wire and cable bundles
  • Halogen free
  • Low smoke propagation and toxicity
  • Perforated format that includes fastening slots for cable ties
  • Available in various colours
Show more

Request your individual offer now

e-Learning
Application The Tiptag HF cable markers have been designed to identify larger wires and cable bundles not only in the electronics and general cabling environments but also in the railway industry. Tiptag HF is halogen free and its material properties show low smoke propagation, density and toxicity. Tiptags are presented in a special perforated format which include fastening slots for easy fitting with cable ties. They are also suitable for retrofit purposes. Print from the reel with HellermannTyton's premium range of thermal transfer printers and ribbons for optimum print quality and longevity.
Application Method Secured to bundles using Cable Ties up to T50R width maximum
Application Tool TT431, TT4030
Colour Red (RD)
Fixation Method Others
Local order number TIPTAG11RDX100S
Material Polyolefin (PO)
PART DESCRIPTION TIPTAG11X100RD-PO-RD
Pack Cont. 120pcs.
Package Content packed in Reel
Product Family TIPTAG HF - Limited Fire Hazard Tiptags, Halogen free
Product Group Identification tags for cable bundle, thermal transfer
Self adhesive (Yes/No) No
Short Description Identification tag halogen free 11x100 mm red
Type TIPTAG11X100RD
Variant Roller form
With label space Yes
Length (L) 100.0mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Strap Width max. (G) 4.6mm
Weight/Unit 0.00217kg
Width (W) 11.0mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +90 °C, (+160 °C, for 200 h)
ROHS compliant Yes
Recommended Ribbon Type TTDTHOUT
Reel Variant continuous
Specifications
Specifications EN 45545-2
Country of Origin GB
Customs Number 39209990
GTIN-13 / EAN 5022660013157
Packaging 1 - Height (m) 0.16m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 120
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00041
Packaging 1 - Weight (kg) 0.2604kg
Packaging 1 - Width (m) 0.016m
Packaging 2 - Height (m) 0.168m
Packaging 2 - Length (m) 0.168m
Packaging 2 - Qty 600
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0031
Packaging 2 - Weight (kg) 1.405kg
Packaging 2 - Width (m) 0.11m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
