Identification tags for cable bundle, thermal transfer TIPTAG11X100YE
TIPTAG HF - Limited Fire Hazard Tiptags, Halogen free, Article number: 556-20074
Features
- Ideal for marking larger wire and cable bundles
- Halogen free
- Low smoke propagation and toxicity
- Perforated format that includes fastening slots for cable ties
- Available in various colours
Certifications & Approvals
Application

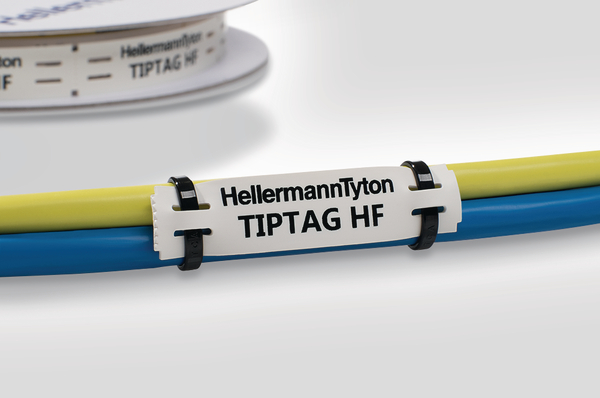

The Tiptag HF cable markers have been designed to identify larger wires and cable bundles not only in the electronics and general cabling environments but also in the railway industry. Tiptag HF is halogen free and its material properties show low smoke propagation, density and toxicity. Tiptags are presented in a special perforated format which include fastening slots for easy fitting with cable ties. They are also suitable for retrofit purposes.

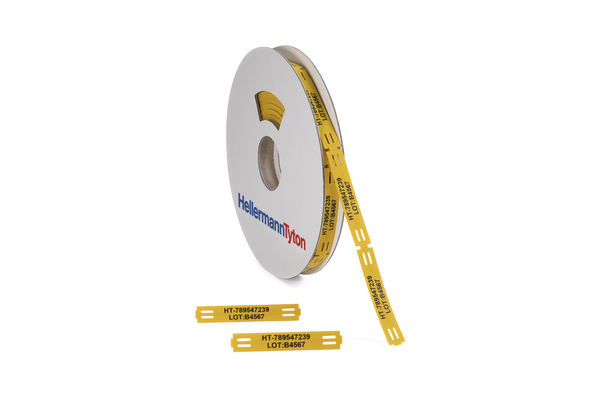

Print from the reel with HellermannTyton's premium range of thermal transfer printers and ribbons for optimum print quality and longevity.
TIPTAG HF - Limited Fire Hazard Tiptags, Halogen free is suitable for following markets and industries
-
Solar Energy Sector
-
Wind Energy Sector
-
Rail Transportation Sector
-
Electronics Industry
-
Shipbuilding
-
Defence Industry
More products in this product group
Identification tags for cable bundle, thermal transfer >| Application Tool | TT430, TT4030 |
| Colour | Yellow (YE) |
| Description Short (BMEcat) (max. 150 characters) | Identification Tag halogen free yellow 11x100 mm |
| Fixation Method | Others |
| GLOBAL PART DESCRIPTION | TIPTAG11X100YE-PO-YE |
| Mounting method | Others |
| Pack Cont. | 120pcs. |
| Package Quantity per | roll |
| Product Family | TIPTAG HF - Limited Fire Hazard Tiptags, Halogen free |
| Product Group | Identification tags for cable bundle, thermal transfer |
| Self adhesive (Yes/No) | No |
| Type | TIPTAG11YWX100S |
| Variant | Other |
| With label space | Yes |
|
|
|
| Length (L) | 100.0mm |
| Print Method | Thermal transfer or laser beam |
| Width (W) | 11.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| EN 45545-2 Results | R22 HL3, R23 HL3 |
| Flammability | Limited Fire Hazard, Low generation of toxic gases and corrosive acid, Low smoke generation, Halogen free |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyolefin (PO) |
| Operating Temperature - °C | -40 °C to +90 °C, (+160 °C, for 200 h) |
| Recommended Ribbon Type | TTDTHOUT |
| Specifications |
|
| EAN / GTIN | 5022660013140 |
| Packaging 1 - Height (m) | 0.16m |
| Packaging 1 - Length (m) | 0.16m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00036m³ |
| Packaging 1 - Weight (kg) | 0.26kg |
| Packaging 1 - Width (m) | 0.014m |
| Weight | 0.26kg |
| ETIM 6.0 | EC001530 |
