29/02/2024

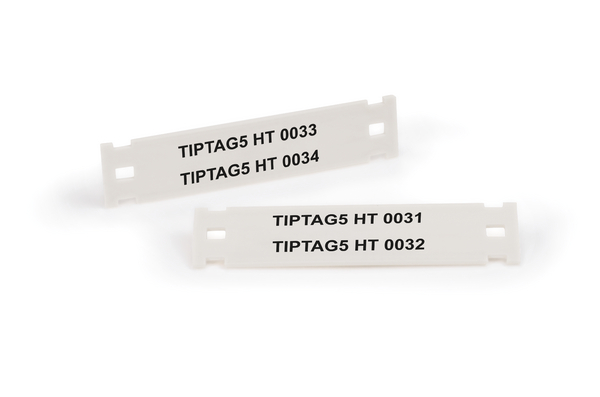

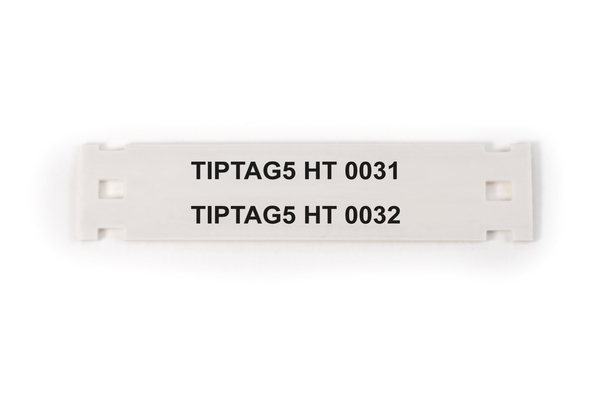

Tiptag5 Mini - HF Limited Fire Hazard, Halogen free
Art.-No. 556-81500 | TIPTAG5X50WH-2-PO-WH Details

  • Very compact size
  • Extension of current Tiptag HF portfolio

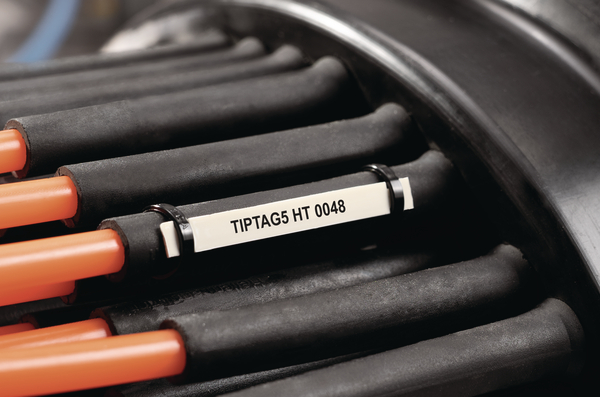

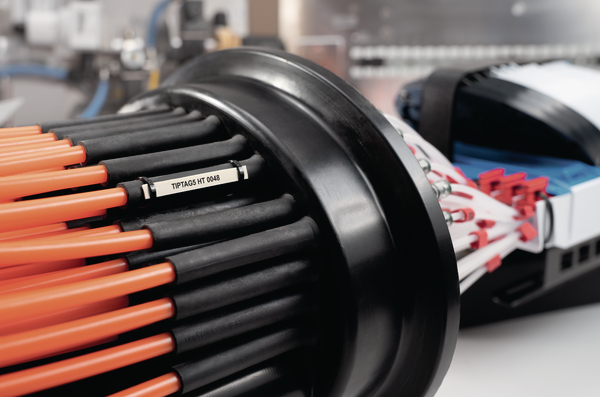

  • Designed to identify wires and cable bundles even down to the smallest diameter
  • Halogen free
  • Low smoke propagation and toxicty
  • EN45545
  • Various colours available on request
  • 50mm Length (40mm printable area) and 5.5mm High
Show more

Request your individual offer now

e-Learning
Application Tiptag5 Mini is a specially designed cable marker with a compact size, ideal for identifying small wires, like fibre optic cables. This marker can be easily attached witg the range of slim T18R cable ties. Also, it counts with easy fastening slots for quick application and a perforated format which allows and easy removal and application from batch. Print with HellermannTyton`s premium range of thermal printers and ribbons to ensure the best printing quality.
Application Method Secured to bundles using Cable Ties up to T50R width maximum
Application Tool TT431, TT4030
Colour White (WH)
Fixation Method Others
Local order number 556-81500
Material Polyolefin (PO)
Pack Cont. 500pcs.
Package Content packed in Reel
PART DESCRIPTION TIPTAG5X50WH-2-PO-WH
Product Family Tiptag5 Mini - HF Limited Fire Hazard, Halogen free
Product Group Identification tags for cable bundle, thermal transfer
Self adhesive (Yes/No) No
Variant Roller form
With label space Yes
Length (L) 50mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Width (W) 5.5mm
Halogen-free Yes
Limited Fire Hazard Yes
Operating Temperature -40 °C to +90 °C, (+160 °C, for 200 h)
Pre-Printed No
Recommended Ribbon Type TTDTHOUT
Reel Variant continuous
Specifications
Specifications EN 45545-2
Country of Origin GB
GTIN-13 / EAN 5022660719967
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
