08/11/2024

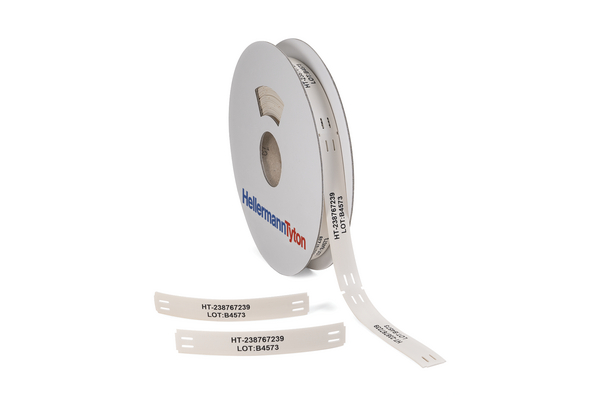

Cable marker, continuous, thermal transfer print, 100.0x15.0mm, white, reel=125pcs.
Art.-No. 556-25006 | TTAGPU15X100WH-PUR-WH Details

  • Durable and robust polyurethane material
  • For large cable bundles and wires
  • Flame retardant
  • Weather resistant
  • Abrasion resistant
  • Good resistance to chemicals
  • Available in white and yellow as standard
  • Perforated format with fastening slots for cable ties
Show more

Request your individual offer now

e-Learning
Application The Tiptag PU cable markers consist of a robust and flexible polyurethane material. It is especially suited for harsh environments where the material is exposed to chemical, fluids or abrasion. Tiptag PU's are presented in a special perforated format which include fastening slots for easy fitting with cable ties. They are also suitable for retrofit purposes. Print from the reel with HellermannTyton's premium range of thermal transfer printers. A special ribbon has been developed for Tiptag PU to create a “tattoo” effect so that the marking cannot be rubbed off and is particularly durable and resistant to harsh abrasion.
Application Method Secured to bundles using Cable Ties up to T50R width maximum
Colour White (WH)
Fixation Method Others
Local order number TTAGPU15WHX100S
Material Polyurethane (PUR)
PART DESCRIPTION TTAGPU15X100WH-PUR-WH
Pack Cont. 125pcs.
Package Content packed in Reel
Product Family TIPTAG PU - UV-stabilised Tiptags, Polyurethane
Product Group Identification tags for cable bundle, thermal transfer
Self adhesive (Yes/No) No
Short Description Identification Tag for high temperature white 15x100 mm
Type TTAGPU15X100WH
Variant Roller form
With label space Yes
H printable 11mm
Length (L) 100.0mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Strap Width max. (G) 4.6mm
Weight/Unit 0.0024kg
Width (W) 15.0mm
Width printable 65mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (3 mm)
Hazardous Goods No
Operating Temperature -65 °C to +120 °C, intermittent 150 °C
ROHS compliant Yes
Recommended Ribbon Type TTRC+
Reel Variant continuous
Self extinguishing Yes
Specifications
UV-Stabilised Yes
Country of Origin GB
Customs Number 39209990
GTIN-13 / EAN 4031026300085
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 125
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00064
Packaging 1 - Weight (kg) 0.3kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
