Identification Tag for high temperature yellow 15x65 mm
Art.-No. 556-25011 | TTAGPU15X65YE-PUR-YE Details

  • Durable and robust polyurethane material
  • For large cable bundles and wires
  • Flame retardant
  • Weather resistant
  • Abrasion resistant
  • Good resistance to chemicals
  • Available in white and yellow as standard
  • Perforated format with fastening slots for cable ties
Show more

Request your individual offer now

e-Learning

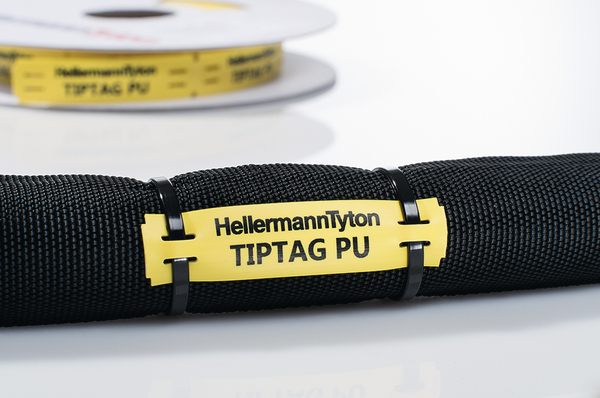

Application The Tiptag PU cable markers consist of a robust and flexible polyurethane material. It is especially suited for harsh environments where the material is exposed to chemical, fluids or abrasion. Tiptag PU's are presented in a special perforated format which include fastening slots for easy fitting with cable ties. They are also suitable for retrofit purposes. Print from the reel with HellermannTyton's premium range of thermal transfer printers. A special ribbon has been developed for Tiptag PU to create a “tattoo” effect so that the marking cannot be rubbed off and is particularly durable and resistant to harsh abrasion.

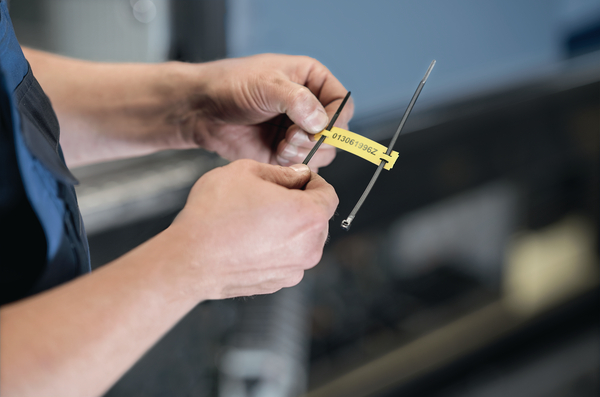

Application Method Secured to bundles using Cable Ties up to T50R width maximum
Application Tool TT431, TT4030
Colour Yellow (YE)
Fixation Method Others
Local order number TTAGPU15YWX65S
Material Polyurethane (PUR)
Pack Cont. 190pcs.

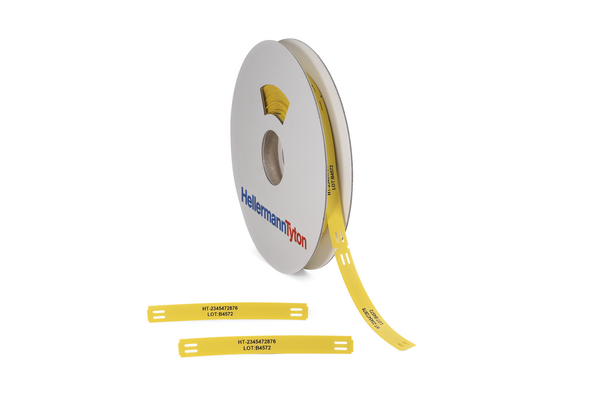

Package Content packed in Reel
PART DESCRIPTION TTAGPU15X65YE-PUR-YE
Product Family TIPTAG PU - UV-stabilised Tiptags, Polyurethane
Product Group Identification tags for cable bundle, thermal transfer
Self adhesive (Yes/No) No
Short Description Identification Tag for high temperature yellow 15x65 mm
Variant Roller form
With label space Yes
H printable 11mm
Length (L) 65.0mm
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Weight/Unit 0.001526kg
Width (W) 15.0mm
Width printable 65mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (3 mm)
Hazardous Goods No

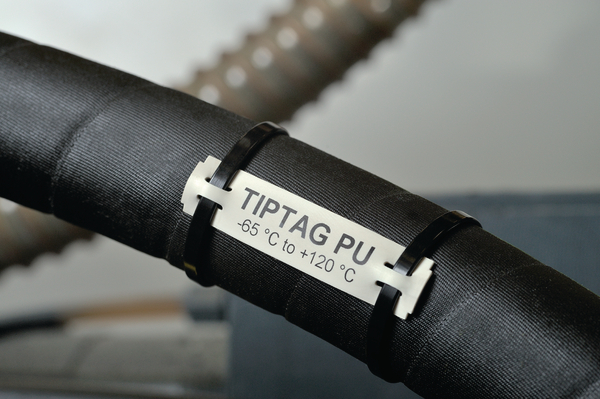

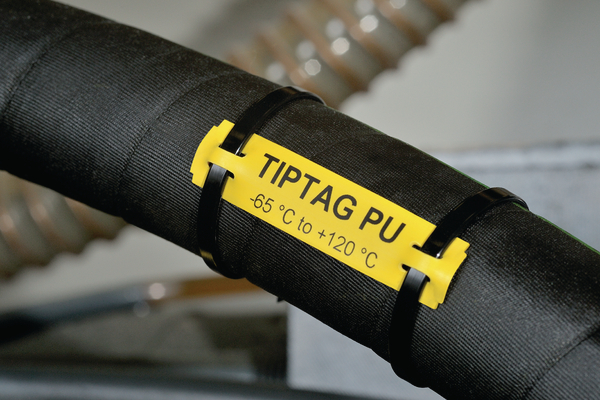

Operating Temperature -65 °C to +120 °C, intermittent 150 °C
Recommended Ribbon Type TTRC+
Reel Variant continuous
Self extinguishing Yes
Specifications
Country of Origin GB
Customs Number 39209990
GTIN-13 / EAN 4031026239187
Packaging 1 - Height (m) 0.023m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 190
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00059
Packaging 1 - Weight (kg) 0.290001kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 760
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 1.66kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
