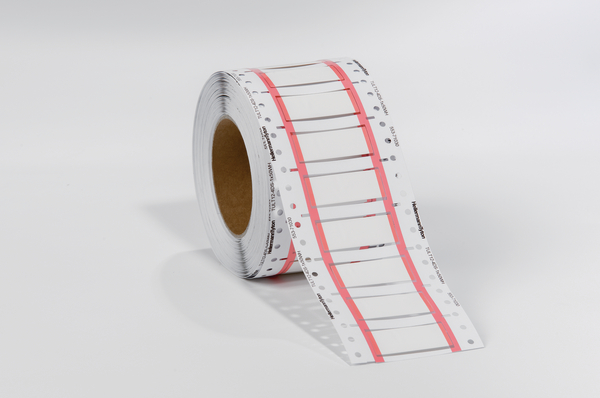

Heat shrink marker, flame retardant/chemical resistance, thermal transfer print, ladder-style, 18.0mm/6.0mm, W=16mm, white, 1500pcs.
Art.-No. 553-71040 | TULT18-6DS-3x16WH-PO-X-WH |

Shrink ratio 3:1
50 mm, 25 mm and 16 mm pre-cut marker options as standard, other lengths available on request
Available in white or yellow
Good mechanical strength and resistance to organic solvents and chemicals
Highly flexible
Delivery in convenient storage boxes

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	TULT DS is a UL recognised 3:1 heat shrink marker material pre-cut and formatted into a convenient "ladder" system. This pre-cut format not only allows printing on both sides of the marker but the user can also easily choose and pick each required marker. TULT’s polyolefin compound has good mechanical strength and resistance to organic solvents and chemicals. The surface of the tubing has been especially prepared so that print performance is excellent at all times using HellermannTyton's printer range.
Behaviour at low Temperature test method	ASTM D2671
Colour	White (WH)
Fixation Method	Suspend
Heat Aging Test	168h/175°C
Heat Aging test method	ASTM D638
Heat Shock Test	4h/250°C
Key product features	flame retardant, chemical resistance, UV resistant
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	TULT18-6DS-3x16WH-PO-X-WH
Package Content	1500pcs.
Package Content packed in	Carton
Print Method	thermal transfer print
Print Method (Alternative)	laser beam print
Printable	Yes
Product Family	TULT DS – 3:1 Military and Electronics "Ladder Style"
Product Group	Shrinkable markers "Ladder Style", thermal transfer
Short Description	Shrinkable markers ladder style, thermal transfer, 3:1 (18.0 mm/6.0 mm) white 16 mm UL-listed
Shrink Ratio	3:1
Type	TULT18-6DS-3x16WH
Variant	Roller form
Weight/Unit	0.0005kg
With label space	Yes


Longitudinal Change After Shrinkage	-15% max.
Longitudinal Change After Shrinkage test method	ASTM D2671
Recov. ⌀ d	6.0mm
Recov. ⌀ d max. (imperial)	0.237"
Supplied ⌀ D	18.0mm
Supplied ⌀ D min. (imperial)	0.71"
Wall (WT)	0.90mm
Wall (WT) (imperial)	0.039"
Width (W)	16mm

Dielectric Strength	20kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Elongation at break (min.)	300%
Elongation at break test method	ASTM D638
Flammability	UL 224 VW-1
Halogen-free	No
Hazardous Goods	No
Minimum Shrink Temperature	+90 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Recommended Ribbon Type	TTDTHOUT
Reel Variant	ladder-style
Shelf Life	24 months
Specifications
Specifications	C22.2 no. 198.1-99, MIL-STD-202H Method 215K
Tensile Strength	11.00N/mm²
Test Method Tensile Strength	ASTM D638
US Gov. Designation	MIL-STD-202H Method 215K
Volume Resistance	10¹⁶ Ω cm
Volume Resistance test method	ASTM D257
Water Absorption	0.20%

Country of Origin	DK
Customs Number	39173200
GTIN-13 / EAN	4031026453644
Packaging 1 - Height (m)	0.1m
Packaging 1 - Length (m)	0.185m
Packaging 1 - Qty	1500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0032375m³
Packaging 1 - Weight (kg)	0.750001kg
Packaging 1 - Width (m)	0.175m
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
