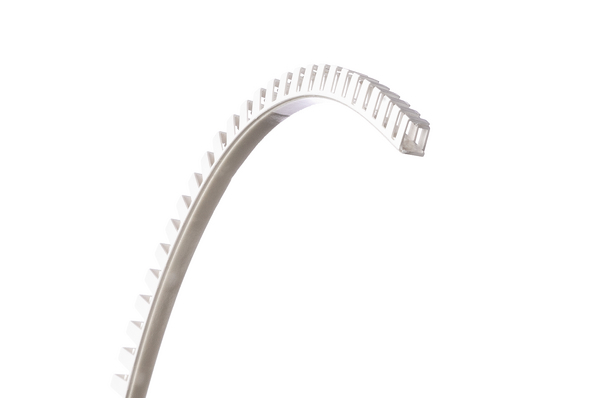

Flexible Cable Support HelaDuct Flex10SK

Heladuct Flex, Article number: 164-11108


  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer

Certifications & Approvals


Heladuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.

Heladuct Flex is suitable for following markets and industries

  • Electrical Installation Electrical Installation
Colour White (WH)
Current leak stable Yes/No Yes
Description Short (BMEcat) (max. 150 characters) Flexible cable support 11x13.5 mm, 500 mm, PP, white
Fixation Method Screw Mounting and Adhesive
No. of Wires 6 x 1.50 mm²
No. of Wires 9 x 0.75 mm²
No. of Wires 4 x 2.50 mm²
Pack Cont. 100pcs.
Package Quantity per Box
Product Family Heladuct Flex
Product Group Flexible Cable Support
Type of side wall Slotted
Diameter (D) 10mm
Diameter D (Metric) 9 x 11mm
Height (H) 13.5mm
Inside Ø (ID) 10mm
Length (L) 500mm
Max. load on a length of 500 mm at 70 °C (g) 100
Nominal ∅ 10mm
Width (W) 11mm
Width (W2) 5mm
Width (W3) 8mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +80 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polypropylene (PP)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Self extinguishing (Yes/No) ETIM Yes
EAN / GTIN 4031026329536
Packaging 3 - Height (m) 0.28m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0286
Packaging 3 - Weight (kg) 2.56kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Height (m) 0.985m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.946
Packaging 4 - Weight (kg) 82.433kg
Packaging 4 - Width (m) 0.8m
Weight 0.02kg
ETIM 5.0 EC000012
ETIM 6.0 EC000012
