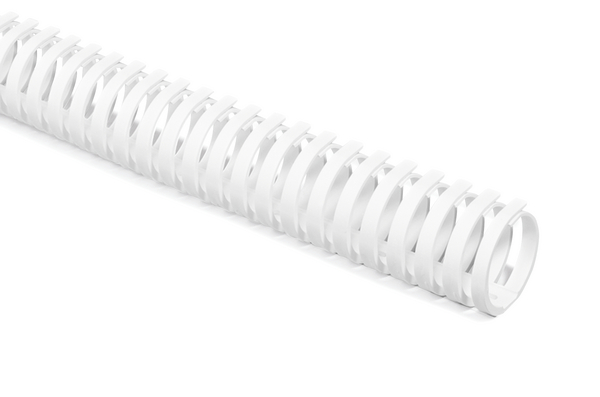

Flexible cable support 45x48 mm, 500 mm, PP, white, for screwing or gluing
Art.-No. 164-41108 | HelaDuct Flex40SK-PP-WH Details

  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer

Request your individual offer now

Application Heladuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.
Colour White (WH)
Current leak stable Yes/No Yes
Fixation Method Screw Mounting and Adhesive
Material Polypropylene (PP)
No. of Wires 60 x 2.50 mm²
No. of Wires 81 x 2.50 mm²
No. of Wires 81 x 1.50 mm²
PART DESCRIPTION HelaDuct Flex40SK-PP-WH
Pack Cont. 24pcs.
Package Content packed in Box
Product Family Heladuct Flex
Product Group Flexible Cable Support
Short Description Flexible cable support 45x48 mm, 500 mm, PP, white, for screwing or gluing
Type HelaDuct Flex40SK
Type of side wall Slotted
Diameter (D) 40mm
Height (H) 48.0mm
Inner Diameter D (Imperial) 1.57"
Inside Ø (ID) 40.0mm
Length (L) 500mm
Nominal ∅ 40mm
Nominal ∅ (imperial) 1.57"
Weight/Unit 0.103kg
Width (W) 45.0mm
Width (W2) 5.0mm
Width (W3) 8.0mm
∅ D (imperial) 1.57"
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +80 °C
CE Certification Yes
CSA Certified Yes
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -20 °C to +70 °C, (+80 °C, 200 h)
ROHS compliant Yes
Self extinguishing Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
Country of Origin DE
Customs Number 39259020
GTIN-13 / EAN 4031026329567
Packaging 3 - Height (m) 0.29m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 24
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0303
Packaging 3 - Weight (kg) 2.972kg
Packaging 3 - Width (m) 0.205m
Packaging 4 - Height (m) 1.015m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 504
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.974
Packaging 4 - Weight (kg) 83.412kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000012
ETIM 8.0 Key EC000012
ETIM 9.0 Key EC000012
UNSPSC Key 39131712
