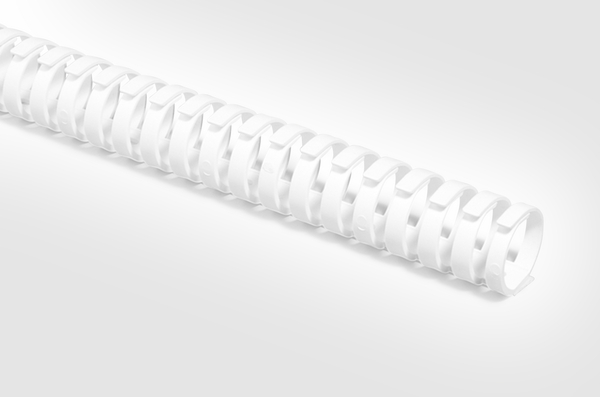

Flexible Cable Support HelaDuct Flex30SK

Heladuct Flex, Article number: 164-31108

Features

  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer

Certifications & Approvals

Application

Heladuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.

Heladuct Flex is suitable for following markets and industries

  • Electrical Installation Electrical Installation
Colour White (WH)
Current leak stable Yes/No Yes
Description Short (BMEcat) (max. 150 characters) Flexible cable support 34x36 mm, 500 mm, PP, white
Fixation Method Screw Mounting and Adhesive
GLOBAL PART DESCRIPTION HelaDuct Flex30SK-PP-WH
No. of Wires 50 x 1.50 mm²
No. of Wires 67 x 0.75 mm²
No. of Wires 34 x 2.50 mm²
Pack Cont. 40pcs.
Package Quantity per Box
Product Family Heladuct Flex
Product Group Flexible Cable Support
Type of side wall Slotted
Diameter (D) 30mm
Height (H) 36mm
Inside Ø (ID) 30mm
Length (L) 500mm
Max. load on a length of 500 mm at 70 °C (g) 500
Nominal ∅ 30mm
Width (W) 34mm
Width (W2) 5mm
Width (W3) 8mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +80 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polypropylene (PP)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Self extinguishing (Yes/No) ETIM Yes
Specifications
EAN / GTIN 4031026329550
Packaging 3 - Height (m) 0.28m
Packaging 3 - Length (m) 0.515m
Packaging 3 - Qty 40
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0288
Packaging 3 - Weight (kg) 3.22kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1120
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 111.16kg
Packaging 4 - Width (m) 0.8m
Weight 0.055kg
ETIM 5.0 EC000012
ETIM 6.0 EC000012
