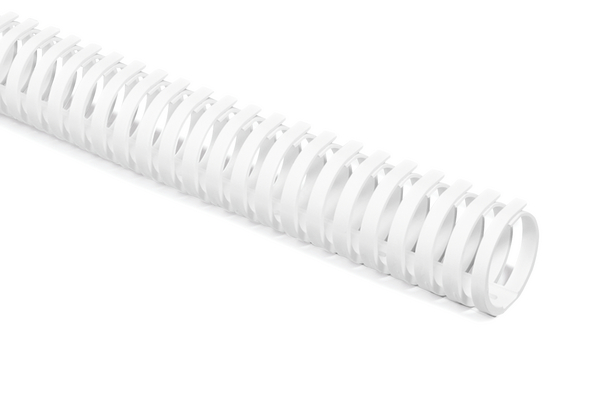

Flexible Cable Support HelaDuct Flex40

Heladuct Flex, Article number: 164-41008

Features

  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer

Certifications & Approvals

Application

Heladuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.

Heladuct Flex is suitable for following markets and industries

  • Electrical Installation Electrical Installation
Colour White (WH)
Current leak stable Yes/No Yes
Description Short (BMEcat) (max. 150 characters) Flexible cable support 45x48 mm, 500 mm, PP, white
Fixation Method Screw Mounting
GLOBAL PART DESCRIPTION HelaDuct Flex40-PP-WH
No. of Wires 81 x 2.50 mm²
No. of Wires 81 x 1.50 mm²
No. of Wires 60 x 2.50 mm²
Pack Cont. 24pcs.
Package Quantity per Box
Product Family Heladuct Flex
Product Group Flexible Cable Support
Type of side wall Slotted
Diameter (D) 40mm
Height (H) 48mm
Inside Ø (ID) 40mm
Length (L) 500mm
Max. load on a length of 500 mm at 70 °C (g) 1100
Nominal ∅ 40mm
Width (W) 45mm
Width (W2) 5mm
Width (W3) 8mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polypropylene (PP)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Self extinguishing (Yes/No) ETIM Yes
Specifications
EAN / GTIN 4031026329529
Packaging 3 - Height (m) 0.28m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 24
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0286
Packaging 3 - Weight (kg) 2.929kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Height (m) 0.985m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 672
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.946
Packaging 4 - Weight (kg) 103.09kg
Packaging 4 - Width (m) 0.8m
Weight 0.105kg
ETIM 5.0 EC000012
ETIM 6.0 EC000012
