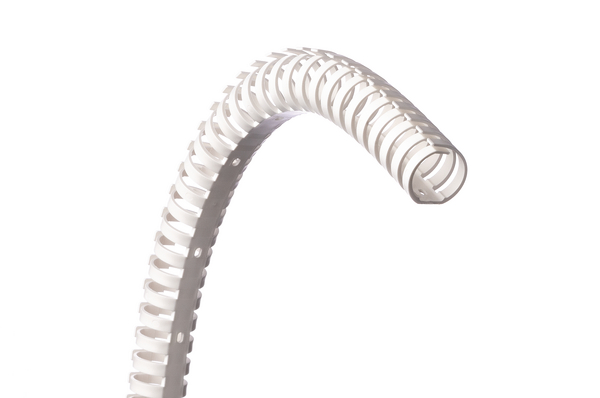

Flexible Cable Support HelaDuct Flex30

Heladuct Flex, Article number: 164-31008

FLEX-30-SK-PP-WH.

Features

  • Space-saving wiring system
  • Highly flexible, can be installed at angles of 90° and higher
  • Cable clearly open to view
  • Rapid mounting with screws or adhesive strip with high-quality foam bonding layer

Certifications & Approvals

Application

Heladuct flexible cable supports are commonly used in switching cabinets. They are also used in the furniture industry, where cables need to be routed rapidly and attractively.

Heladuct Flex is suitable for following markets and industries

Colour White (WH)
Current leak stable Yes/No Yes
Description Short (BMEcat) (max. 150 characters) Flexible cable support 34x36 mm, 500 mm, PP, white
Fixation Method Screw Mounting
GLOBAL PART DESCRIPTION HelaDuct Flex30-PP-WH
No. of Wires 50 x 1.50 mm²
No. of Wires 67 x 0.75 mm²
No. of Wires 34 x 2.50 mm²
Pack Cont. 40pcs.
Package Quantity per Box
Product Family Heladuct Flex
Product Group Flexible Cable Support
Type of side wall Slotted
Diameter (D) 30mm
Height (H) 36mm
Inside Ø (ID) 30mm
Length (L) 500mm
Max. load on a length of 500 mm at 70 °C (g) 650
Nominal ∅ 30mm
Width (W) 34mm
Width (W2) 5mm
Width (W3) 8mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polypropylene (PP)
Operating Temperature - °C -20 °C to +70 °C, (+80 °C, 200 h)
Self extinguishing (Yes/No) ETIM Yes
Specifications
EAN / GTIN 4031026329512
Packaging 3 - Height (m) 0.29m
Packaging 3 - Length (m) 0.51m
Packaging 3 - Qty 40
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0303m³
Packaging 3 - Weight (kg) 3.02kg
Packaging 3 - Width (m) 0.205m
Packaging 4 - Height (m) 1.015m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 840
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.974m³
Packaging 4 - Weight (kg) 84.42kg
Packaging 4 - Width (m) 0.8m
Weight 0.055kg
ETIM 6.0 EC000012
