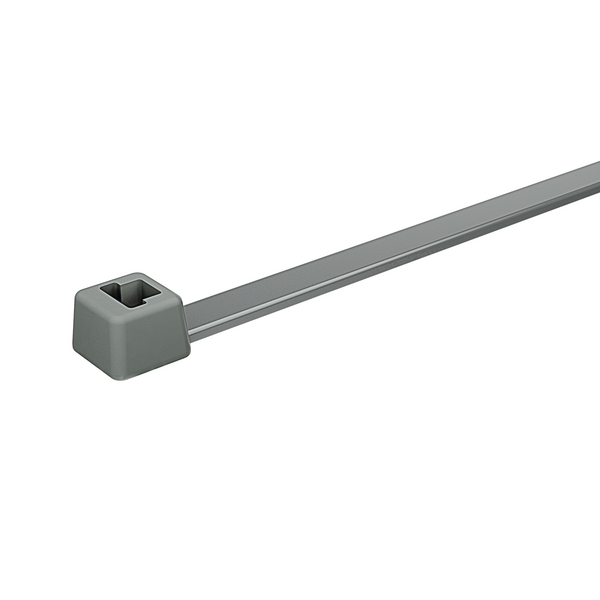

Cable Ties for temperatures up to + 150°C in Polyamide 4.6 T30R

T-Series in PA46, Article number: 111-00264

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C

Certifications & Approvals

Application

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with continuous temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

T-Series in PA46 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Grey (GY)
Description Short (BMEcat) (max. 150 characters) Cable Tie 150x3.5 grau
GLOBAL PART DESCRIPTION T30R-PA46-GY
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family T-Series in PA46
Product Group Cable Ties for temperatures up to + 150°C in Polyamide 4.6
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T30R.RE912
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.5mm
Length (L) 150mm
Min.Tensile Strength 135N
Thickness (T) 1.1mm
Width (W) 3.5mm
Flammability UL 94 V2
Limited Fire Hazard Yes
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
EAN / GTIN 5022660170836
ETIM 5.0 EC000046
ETIM 6.0 EC000046
