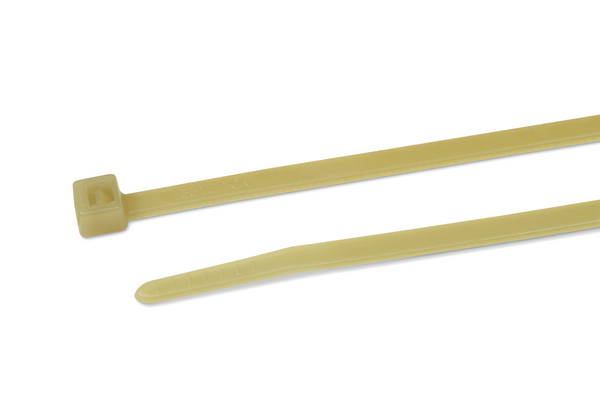

Cable Ties for temperatures up to + 150°C in Polyamide 4.6 T30R

T-Series in PA46, Article number: 114-03379

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C

Certifications & Approvals

Application

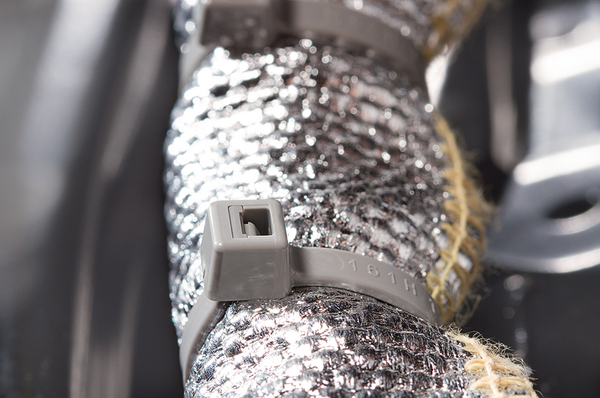

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with continuous temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

T-Series in PA46 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie 150x3.5 PA46-natural
GLOBAL PART DESCRIPTION T30R-PA46-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pcs.
Product Family T-Series in PA46
Product Group Cable Ties for temperatures up to + 150°C in Polyamide 4.6
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T30R.RN3P
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.5mm
Length (L) 150mm
Min.Tensile Strength 135N
Thickness (T) 1.1mm
Width (W) 3.5mm
Flammability UL 94 V2
Limited Fire Hazard Yes
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
EAN / GTIN 5022660021237
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.0700kg
Packaging 3 - Height (m) 0.20m
Packaging 3 - Length (m) 0.59m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.046
Packaging 3 - Weight (kg) 7.50kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.00m
Packaging 4 - Length (m) 1.16m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.882
Packaging 4 - Weight (kg) 170.0kg
Packaging 4 - Width (m) 0.76m
Weight 0.7kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
