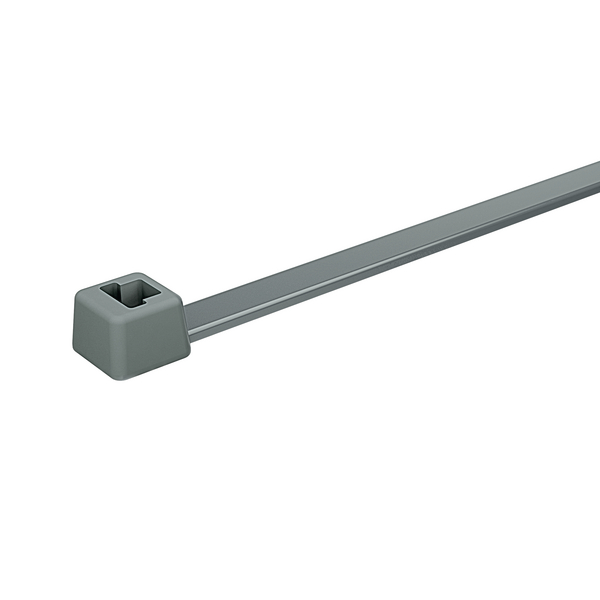

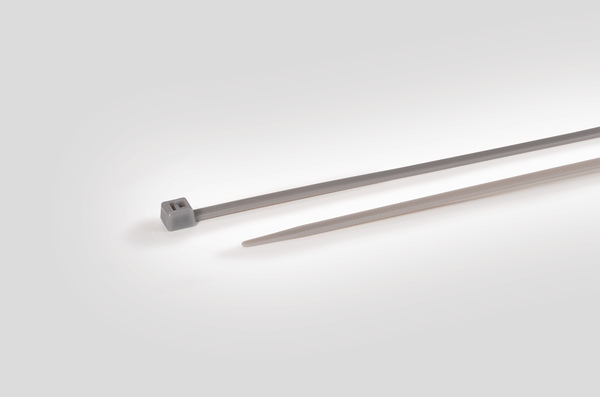

Cable tie inside serrated, 202x4.6mm, Ø1.5-50.0mm, grey, 100pcs.
Art.-No. 111-00824 | T50R-PA46-GY Details

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C
Show more

Request your individual offer now

e-Learning
Application These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with continuous temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Grey (GY)
Identification Plate Position none
Local order number T50R-PA46-GY-C1
Material Polyamide 4.6 (PA46)
PART DESCRIPTION T50R-PA46-GY
Pack Cont. 100pcs.
Product Family T-Series in PA46
Product Group Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6
Releasable Closure (Yes/No) No
Short Description Cable Tie 200x4.6 PA46-grey
Tie Closure plastic pawl
Type T50R
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 1.5-50.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Height (metric) 5.9mm
Cable Tie Head Length (metric) 7.3mm
Cable Tie Head Width (metric) 7.6mm
Length (L) 202mm
Min.Tensile Strength 225N
Strap Width max. (G) (imperial) 0.3"
Thickness (T) 1.2mm
Weight/Unit 0.00162kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026284286
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.155m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00198
Packaging 1 - Weight (kg) 0.162001kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 7000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 12.09007kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 140000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 262.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
