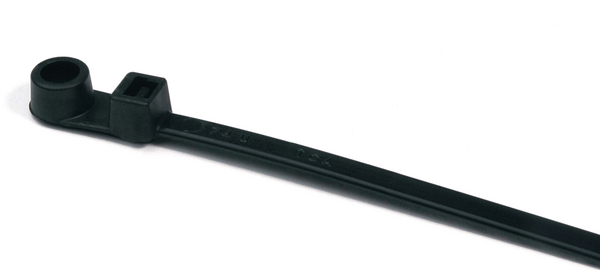

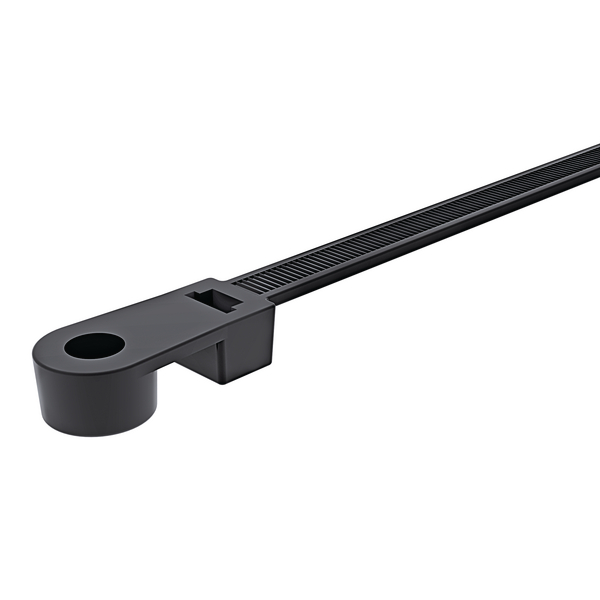

Fixing tie for screw fixation, inside serrated, ⌀5.0-102.0mm, black, 50pcs.
Art.-No. 113-12060
| T120MR-PA66W-BK
|
Copied
- One-piece bundling and fixing tie
- Quick and easy installation
Request your individual offer now
Request quote
More products in this product group:
| Application |
The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added. Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites. |
| Colour | Black (BK) |
| Fixation Method | Screw Mount |
| Identification Plate Position | none |
| Local order number | T120MR.WB2P |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Mechanical Strength | 333.6N |
| Min.Tensile Strength | 535N |
| Mounting Screw Type | #1/4" (M6) Screw |
| PART DESCRIPTION | T120MR-PA66W-BK |
| Package Content | 50pcs. |
| Package Content packed in | Pack |
| Product Family | MR Series |
| Product Group | 1-piece fixing ties with mounting head for screws |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing Tie 395x7.6 black |
| Tie Closure | plastic pawl |
| Type | T120MR |
| UV-Stabilised | Yes |
| Variant | Inside Serrated |
| Weight/Unit | 0.00679kg |
|
|
| Bundle ⌀ | 5.0-102.0mm |
| Bundle ⌀ max. | 102.0mm |
| Bundle ⌀ min. | 5.0mm |

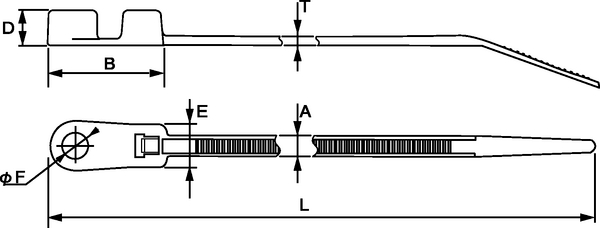

| Cable Tie Head Height (metric) | 7.9mm |
| Cable Tie Head Length (metric) | 28.4mm |
| Cable Tie Head Width (metric) | 13.4mm |
| Height (H) | 7.9mm |
| Length (L) | 395.0mm |
| Strap Width max. (G) (imperial) | 0.51" |
| Thickness (T) | 1.8mm |
| Width (W) | 7.6mm |
| Width (W2) | 13.4mm |
| for Hole ⌀ (FH) | 6.5 mm |
Download
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL 62275 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E64139 |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026108292 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.465m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00355725m³ |
| Packaging 1 - Weight (kg) | 0.339501kg |
| Packaging 1 - Width (m) | 0.17m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 7.41002kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 169.2kg |
| Packaging 4 - Width (m) | 0.8m |
