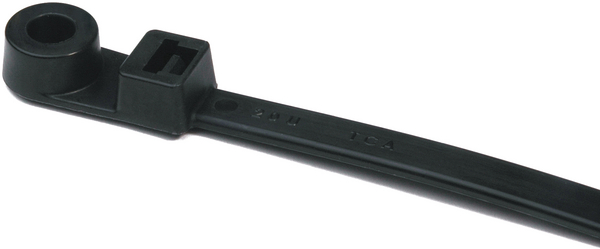

Fixing tie for screw fixation, inside serrated, Ø1.5-45.0mm, black, 100pcs.
Art.-No. 113-05010 | T50MR-PA66-BK Details

  • One-piece bundling and fixing tie
  • Quick and easy installation

Request your individual offer now

Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)
Fixation Method Fixing hole
Identification Plate Position none
Local order number T50MR.NB3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION T50MR-PA66-BK
Product Family MR Series
Product Group 1-piece fixing ties with mounting head for screws
Releasable Closure (Yes/No) No
Short Description Fixing Tie with Mounting Hole 215x4.7 black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 1.5-45.0mm
Bundle ∅ min. 1.5mm

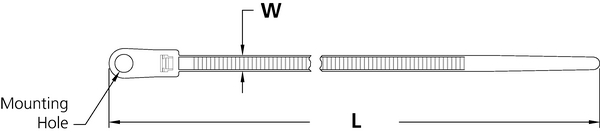

for Hole ∅ (FH) 5.4 mm
Height (H) 5.7mm
Length (L) 215mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Weight/Unit 0.0015kg
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275
UL OCD link Link
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660019203
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.253m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00131
Packaging 1 - Weight (kg) 0.150001kg
Packaging 1 - Width (m) 0.136m
Packaging 2 - Qty 5000
Packaging 2 - Type Carton
Packaging 2 - Weight (kg) 7.5kg
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Width (m) 0.39m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
