25/04/2024

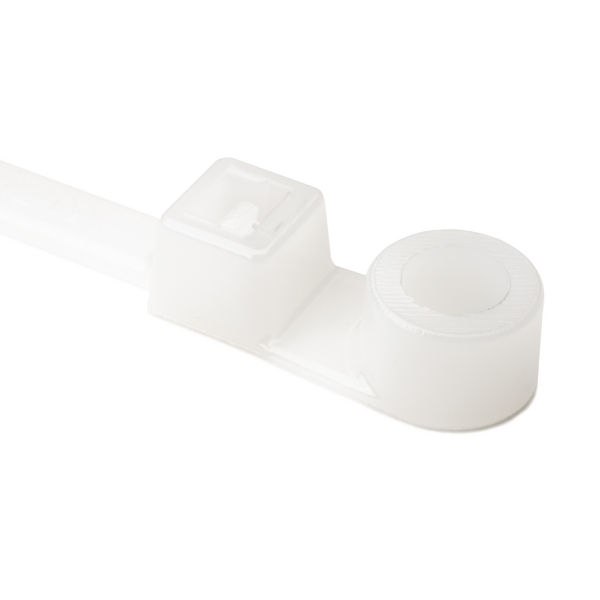

Fixing tie for screw fixation, inside serrated, Ø1.5-45.0mm, natural, 100pcs.
Art.-No. 113-05019 | T50MR-PA66-NA |  Details

Screw mount style creates low insertion and high extraction force.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Natural (NA)
    Fixation Method Fixing hole
    Identification Plate Position none
    Local order number T50MR.NN3P
    Material Polyamide 6.6 (PA66)
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    PART DESCRIPTION T50MR-PA66-NA
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Short Description Fixing Tie with Mounting Hole 215x4.7 natural
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    for Hole ∅ (FH) 5.4 mm
    Height (H) 5.7mm
    Length (L) 215mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Weight/Unit 0.001729kg
    Width (W) 4.7mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275
    UL OCD link Link
    UL Type 11
    UL-File Number E64963
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660019210
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.32m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00146m³
    Packaging 1 - Weight (kg) 0.172901kg
    Packaging 1 - Width (m) 0.13m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 9.44705kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 209.94kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
