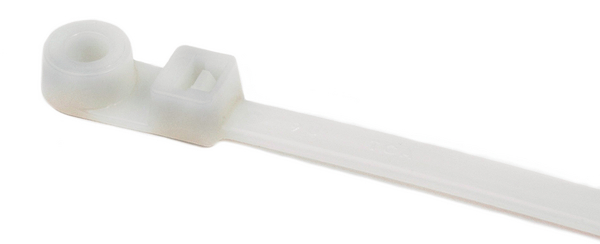

1-piece fixing ties with mounting head for screws : T30MR
Fixing tie 160x3.5 mm, screwable (4.3 mm), natural, Article number: 113-03019
Features
- One-piece bundling and fixing tie
- Quick and easy installation
Certifications & Approvals
Application

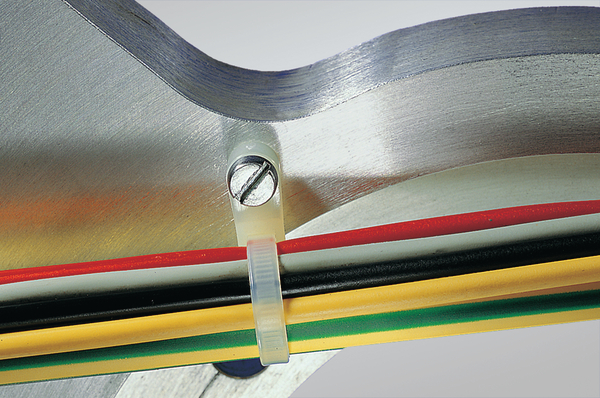

This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.
The tie is fitted to the panel first and then the cables can be added.
MR Series is suitable for following markets and industries
More products in this product group
1-piece fixing ties with mounting head for screws >| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Natural (NA) |
| Fixation Method | Fixing hole |
| Identification Plate Position | none |
| Mounting Screw Type | #8 (M4) Screw |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T30MR-PA66-NA |
| Product Family | MR Series |
| Product Group | 1-piece fixing ties with mounting head for screws |
| Releasable Closure (Yes/No) | No |
| Short Description | 6.3", 30 lb., screw mount tie, natural, 100/bag |
| Short Description | Fixing tie 160x3.5 mm, screwable (4.3 mm), natural |
| Tie Closure | plastic pawl |
| Type | T30MR.NN3P |
| Variant | Inside Serrated |
|
|
| Bundle ∅ max. | 32.0mm |
| Bundle ∅ min. | 1.5mm |
| for Hole ∅ (FH) | 4.3 mm |
| Height (H) | 4.20mm |
| Length (L) | 160.0mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Prop65 Warning | No |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
|
|
|
| EAN / GTIN | 4031026108193 |
| Packaging 1 - Height (m) | 0.027m |
| Packaging 1 - Length (m) | 0.191m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00085m³ |
| Packaging 1 - Weight (kg) | 0.090001kg |
| Packaging 1 - Width (m) | 0.164m |
| Packaging 3 - Height (m) | 0.215m |
| Packaging 3 - Length (m) | 0.512m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 5.11005kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.219m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.17m³ |
| Packaging 4 - Weight (kg) | 123.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.09kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121703 |
