1-piece fixing ties with mounting head for screws : T18MR

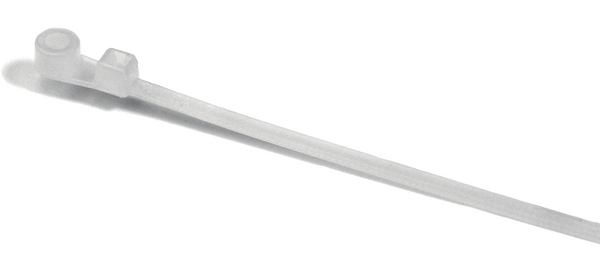

Fixing Tie 110x2.5 naturalArticle number: 113-01819
Features
- One-piece bundling and fixing tie
- Quick and easy installation
Certifications & Approvals
Application

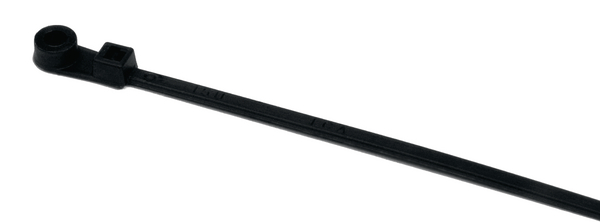

The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.
The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added.
Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites.
More products in this product group
1-piece fixing ties with mounting head for screws >| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Natural (NA) |
| Fixation Method | Fixing hole |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T18MR-PA66-NA |
| Product Family | MR Series |
| Product Group | 1-piece fixing ties with mounting head for screws |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing Tie 110x2.5 natural |
| Tie Closure | plastic pawl |
| Type | T18MR.NN3P |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 20.0mm |
| Bundle ∅ min. | 1.5mm |
| for Hole ∅ (FH) | 3.1 mm |
| Height (H) | 4.2mm |
| Length (L) | 110mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.0mm |
| Width (W) | 2.5mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, CAN/CSA-C22.2 no. 18.5, CAN/CSA-C22.2 no. 62275 |
| UL OCD link | Link |
| UL Type | 11 |
| UL-File Number | E64963 |
|
|
|
| EAN / GTIN | 5022660019159 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.225m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00063m³ |
| Packaging 1 - Weight (kg) | 0.047kg |
| Packaging 1 - Width (m) | 0.14m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 5.462kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 130.24kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.047kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
