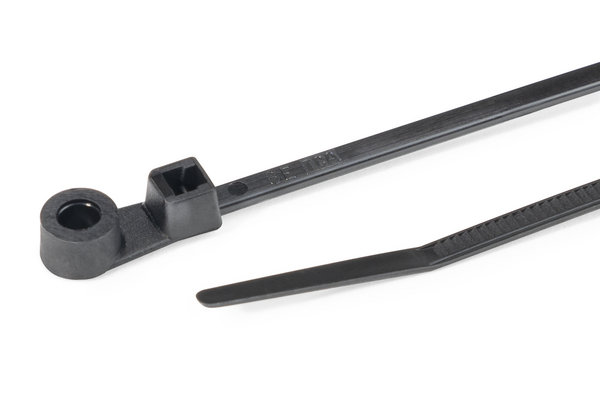

Fixing tie for screw fixation, inside serrated, Ø1.5-20.0mm, black, 100pcs.
Art.-No. 113-01810 | T18MR-PA66-BK Details

  • One-piece bundling and fixing tie
  • Quick and easy installation

Request your individual offer now

Application The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added. Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Fixation Method Fixing hole
Identification Plate Position none
Local order number T18MR.NB3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION T18MR-PA66-BK
Product Family MR Series
Product Group 1-piece fixing ties with mounting head for screws
Releasable Closure (Yes/No) No
Short Description Fixing Tie 110x2.5 black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 20.0mm
Bundle ∅ 1.5-20.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 3.1 mm
Height (H) 4.2mm
Length (L) 110.0mm
Min.Tensile Strength 80N
Thickness (T) 1.0mm
Weight/Unit 0.0003kg
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications csa-C22.2 no. 62275
UL OCD link Link
UL Type 11
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660019142
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.135m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00049
Packaging 1 - Weight (kg) 0.050001kg
Packaging 1 - Width (m) 0.146m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 5.8021kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 137.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
