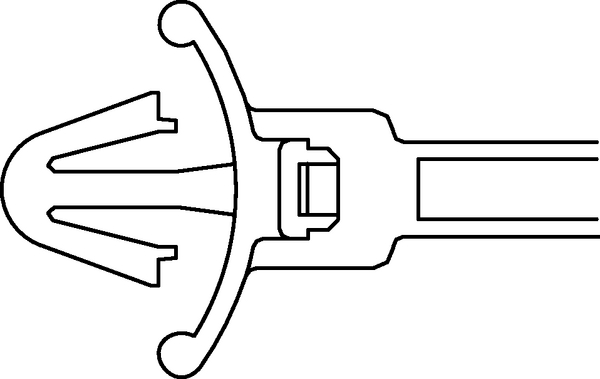

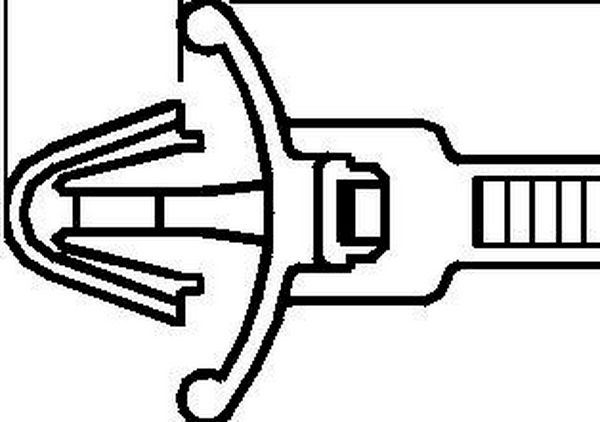

1-piece fixing ties with arrowhead, with wings : T50SL8
1-Piece Fixing Tie with Arrowhead and Disc PA66 165x4.6 black, Article number: 126-01900
Features
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
Certifications & Approvals
Application
For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
1-piece fixing ties with arrowhead, with wings, for round holes is suitable for following markets and industries
More products in this product group
1-piece fixing ties with arrowhead, with wings >| Application Tool | MK3PNSP2, MK3SP, MK7P, MK20, EVO7 |
| Colour | Black (BK) |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T50SL8-PA66-BK |
| Product Family | 1-piece fixing ties with arrowhead, with wings, for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with wings |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc PA66 165x4.6 black |
| Tie Closure | plastic pawl |
| Type | T50SL8.NB3P |
| Variant | Inside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 20.0mm |
| for Hole ∅ (FH) | 8.0 mm |
| for Panel Thickness min - max | 0.8 - 1.5 mm |
| Length (L) | 165mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660326653 |
| Packaging 1 - Height (m) | 0.043m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00334m³ |
| Packaging 1 - Weight (kg) | 0.176kg |
| Packaging 1 - Width (m) | 0.21m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 9.761kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 138.132kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.176kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
