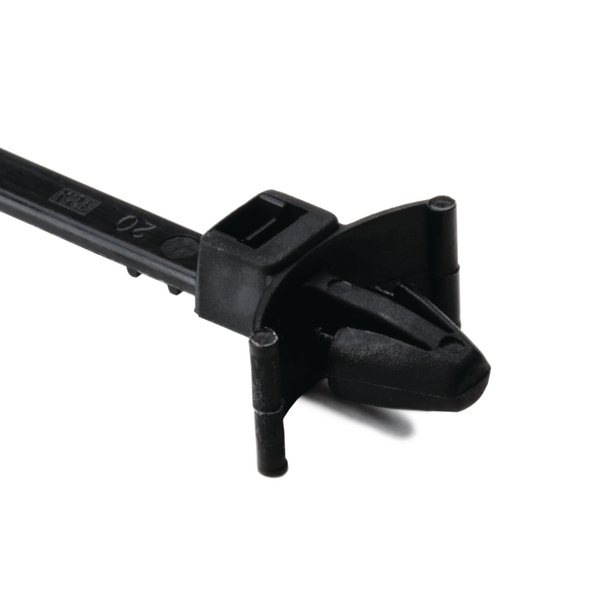

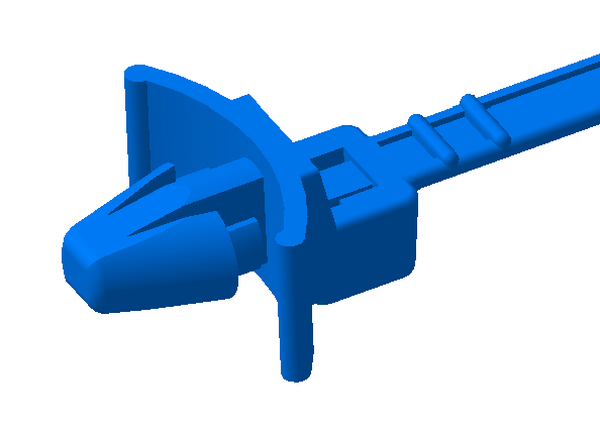

Fixing tie for hole (round), inside serrated, Ø1.5-34.0mm, black, 500pcs.
Art.-No. 126-00001 | T50SL5-PA66HS-BK Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Request your individual offer now

Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Local order number T50SL5.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION T50SL5-PA66HS-BK
Product Family for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Short Description 1-Piece Fixing Tie with Arrowhead and Wings PA66HS 165x4.7 black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 34.0mm
Bundle ∅ 1.5-34.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 6.1 - 6.5 mm
for Panel Thickness min - max 0.8 - 2.5 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 165mm
Min.Tensile Strength 225N
Panel Thickness max. 0.8 – 2.5mm
Thickness (T) 1.2mm
Weight/Unit 0.001458kg
Width (W) 4.7mm
Width (W2) 18.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660326585
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.455m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01479
Packaging 1 - Weight (kg) 0.729001kg
Packaging 1 - Width (m) 0.325m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 6.793008kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 102.516kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
