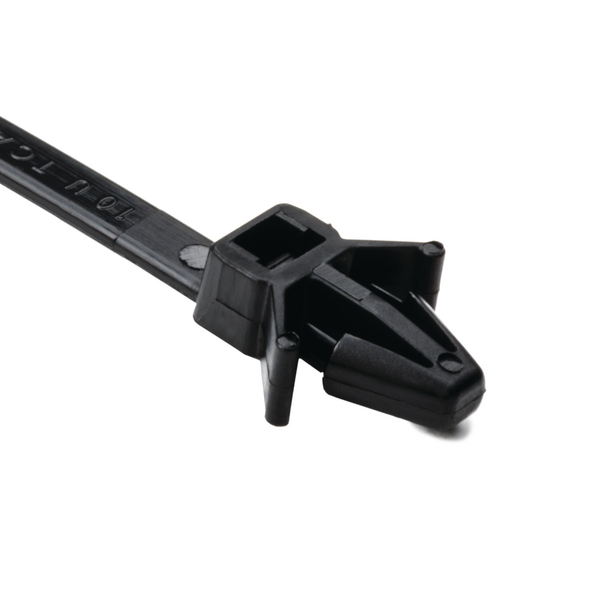

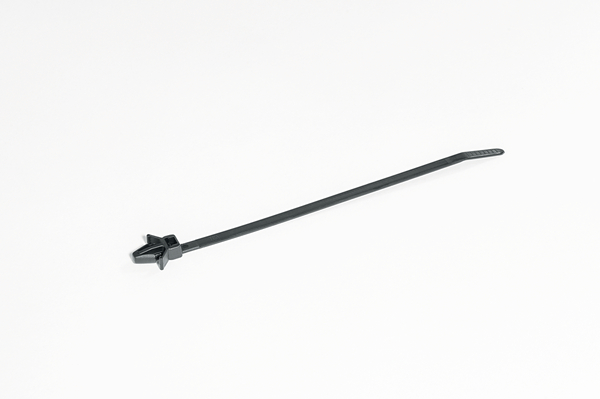

Fixing tie for hole (round), inside serrated, Ø1.5-35.0mm, black, 500pcs.
Art.-No. 126-00032 | T50SSFM-PA66HS-BK Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Request your individual offer now

Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Anti rotation (Yes / No) NO
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Local order number T50SSFM.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SSFM-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Short Description Fixing tie 160 x4.6 mm, arrowhead, heat stabilised, black
Tie Closure plastic pawl
Type T50SSFM
Variant Inside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.5-35.0mm
Bundle ∅ min. 1.5mm
Fixing Hole Shape Circular
Height (H) 5.6mm
Length (L) 160mm
Min.Tensile Strength 222N
Panel Thickness max. 0.7 – 3.0mm
Weight/Unit 0.001358kg
Width (W) 4.6mm
Width (W2) 14.7mm
for Hole ∅ (FH) 6.0 - 6.6 mm
for Panel Thickness min - max 0.7 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660326776
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.445m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00634
Packaging 1 - Weight (kg) 0.679001kg
Packaging 1 - Width (m) 0.375m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 14.54102kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 195.492kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
